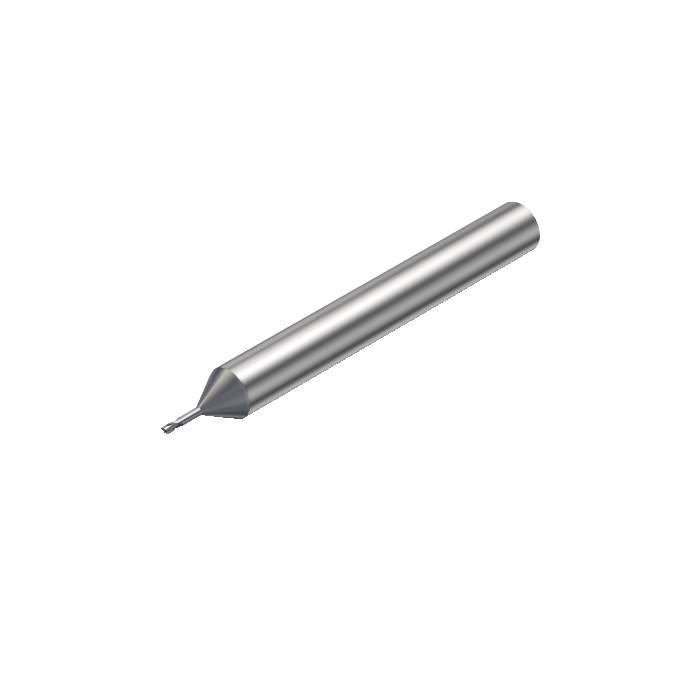

Sandvik Coromant R216.32-00630-AJ06G 1620 CoroMill™ Plura solid carbide end mill for micro-milling

Name: Sandvik Coromant R216.32-00630-AJ06G 1620 CoroMill™ Plura solid carbide end mill for micro-milling
SKU: 5742987
Price: 1357.00 ZAR
Availability: InStock

Be the first to review this product

R 1 357,00 inc. vat

In stock

SKU

5742987

CoroMill® Plura solid carbide end mill for micro-milling

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® Plura solid carbide end mill for micro-milling

More Information

More Information
DCON - Connection Diameter	6mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	57mm
BD - Body Diameter	0.56mm
LB - Body Length	10mm
BHTA - Body Half Taper Angle	30deg
RPMX - Rotational Speed Maximum	800001/min
WT - Weight Of Item	0.031kg
OAL - Overall Length	57mm
OHX - Maximum Overhang	21mm
KAPR - Tool Cutting Edge Angle	90deg
RMPX - Maximum Ramping Angle	5deg
RE - Corner Radius	0mm
LU - Usable Length	6mm
APMX - Depth Of Cut Maximum	0.6mm
DC - Cutting Diameter	0.6mm
DCF - Cutting Diameter Face Contact	0.6mm
DN - Neck Diameter	0.56mm
FHA - Flute Helix Angle	30deg
GAMF - Radial Rake Angle	1.5deg
GAMP - Axial Rake Angle	1.5deg
ULDR - Usable Length Diameter Ratio	10
ORDCODE	R216.32-00630-AJ06G 1620
ADINTMS - Adaptive Interface Machine Direction	M_CYLRD1_F6000_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	2
CHANGEDATE	2022-04-22 09:08:00.000
STDLET - Standard Letter	HA
STDNO - Standard Number	DIN6535
Hand	R
TCDCON - Connection Diameter Tolerance	h6
Grade	1620
COATING	PVD TiAlN
SUBSTRATE	HC
BSG - Basic Standard Group	COROMANT
ZEFP - Peripheral Effective Cutting Edge Count	2
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
CCC - Center Cutting Capability	True
CPDF - Cutting Pitch Differential	False
