Sandvik Coromant R216.34-14050-BC26P 1640 CoroMill™ Plura solid carbide end mill for Stable Multi-Operations milling Previous Sandvik Coromant R216.34-14050-BC26P 1640 CoroMill™ Plura solid carbide end mill for Stable Multi-Operations milling

Sandvik Coromant R216.34-06030-BC13B 1620 CoroMill™ Plura solid carbide end mill for roughing with chip breaker

R 1 483,50 inc. vat
In stock
SKU
5743292

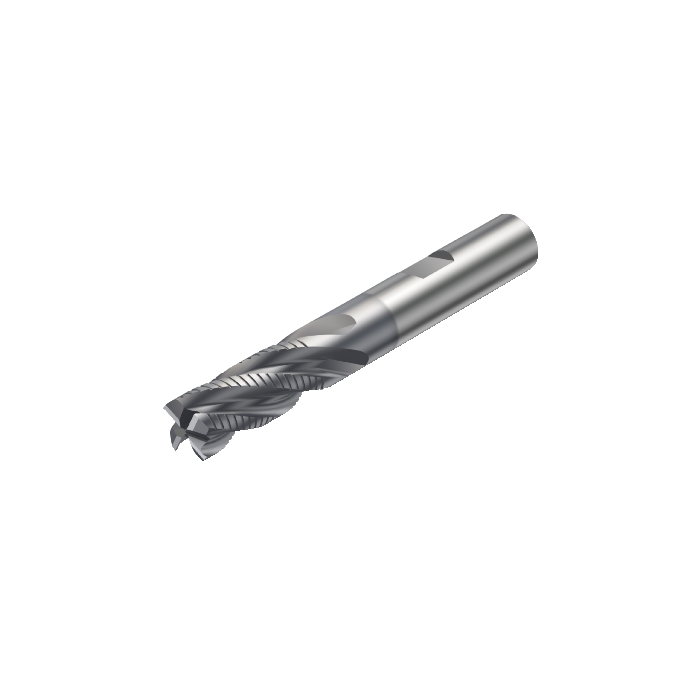

CoroMill® Plura solid carbide end mill for roughing with chip breaker
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® Plura solid carbide end mill for roughing with chip breaker
More Information
DCON - Connection Diameter 6mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 57mm
RPMX - Rotational Speed Maximum 800001/min
WT - Weight Of Item 0.032kg
OAL - Overall Length 57mm
OHX - Maximum Overhang 21mm
LSC - Clamping Length 36mm
KAPR - Tool Cutting Edge Angle 90deg
RMPX - Maximum Ramping Angle 5deg
RE - Corner Radius 0mm
H - Shank Height 4.8mm
LU - Usable Length 13mm
MHD - Mounting Hole Distance 18mm
APMX - Depth Of Cut Maximum 13mm
DC - Cutting Diameter 6mm
DCF - Cutting Diameter Face Contact 6mm
FHA - Flute Helix Angle 30deg
GAMF - Radial Rake Angle 4deg
GAMP - Axial Rake Angle 13.5deg
ULDR - Usable Length Diameter Ratio 2.166666666667
ORDCODE R216.34-06030-BC13B 1620
ADINTMS - Adaptive Interface Machine Direction M_CYLW_F6000_1
CNSC - Coolant Entry Style Code 0
CXSC - Coolant Exit Style Code 0
BMC - Body Material Code 2
CHANGEDATE 2022-04-22 09:21:00.000
STDLET - Standard Letter WE
STDNO - Standard Number DIN6535
Hand R
TCDCON - Connection Diameter Tolerance h6
Grade 1620
COATING PVD TiAlN
SUBSTRATE HC
BSG - Basic Standard Group DIN 6527 L
ZEFP - Peripheral Effective Cutting Edge Count 4
NROTF - Non Rotating Functionality False
RTOF - Rotating Functionality True
CCC - Center Cutting Capability True
CPDF - Cutting Pitch Differential False
