Sandvik Coromant R216.34-16030-BC32B 1620 CoroMill™ Plura solid carbide end mill for roughing with chip breaker

R 5 442,95 inc. vat
In stock
SKU
5743298

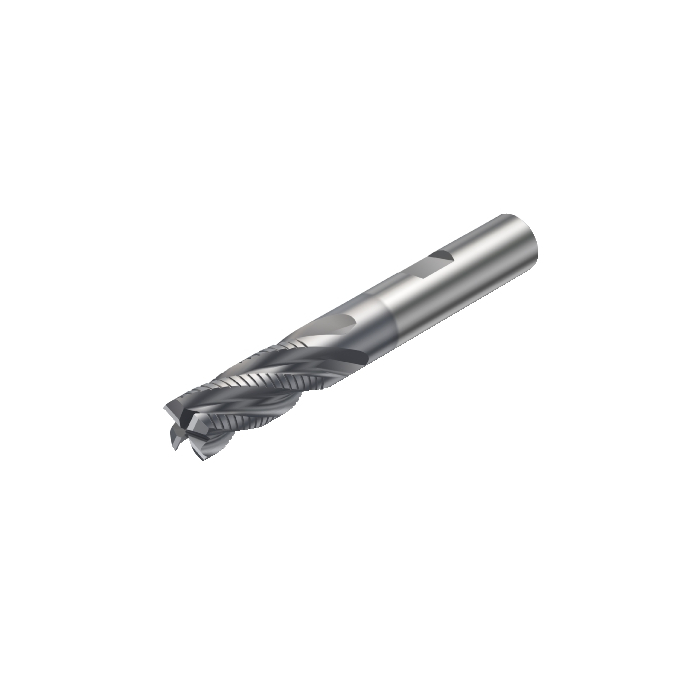

CoroMill® Plura solid carbide end mill for roughing with chip breaker
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® Plura solid carbide end mill for roughing with chip breaker
More Information
DCON - Connection Diameter 16mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 92mm
RPMX - Rotational Speed Maximum 800001/min
WT - Weight Of Item 0.246kg
OAL - Overall Length 92mm
OHX - Maximum Overhang 44mm
LSC - Clamping Length 48mm
KAPR - Tool Cutting Edge Angle 90deg
RMPX - Maximum Ramping Angle 5deg
H - Shank Height 14.2mm
LU - Usable Length 32mm
MHD - Mounting Hole Distance 24mm
APMX - Depth Of Cut Maximum 32mm
KCH - Corner Chamfer 45deg
CHW - Corner Chamfer Width 0.15mm
DC - Cutting Diameter 16mm
DCF - Cutting Diameter Face Contact 15.7mm
FHA - Flute Helix Angle 30deg
GAMF - Radial Rake Angle 4deg
GAMP - Axial Rake Angle 13.5deg
ULDR - Usable Length Diameter Ratio 2
ORDCODE R216.34-16030-BC32B 1620
ADINTMS - Adaptive Interface Machine Direction M_CYLW_G1600_1
CNSC - Coolant Entry Style Code 0
CXSC - Coolant Exit Style Code 0
BMC - Body Material Code 2
CHANGEDATE 2022-04-22 09:21:00.000
STDLET - Standard Letter WE
STDNO - Standard Number ISO3338-2
Hand R
TCDCON - Connection Diameter Tolerance h6
Grade 1620
COATING PVD TiAlN
SUBSTRATE HC
BSG - Basic Standard Group DIN 6527 L
ZEFP - Peripheral Effective Cutting Edge Count 4
NROTF - Non Rotating Functionality False
RTOF - Rotating Functionality True
CCC - Center Cutting Capability True
CPDF - Cutting Pitch Differential False
