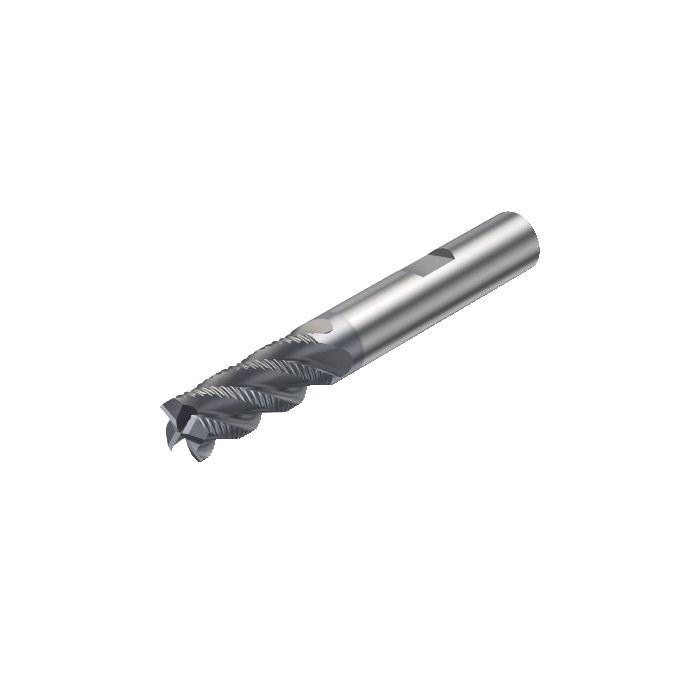

Sandvik Coromant R216.34-20040-BC38K 1640 CoroMill™ Plura solid carbide end mill for roughing with chip breaker

Name: Sandvik Coromant R216.34-20040-BC38K 1640 CoroMill™ Plura solid carbide end mill for roughing with chip breaker
SKU: 5743418
Price: 8902.15 ZAR
Availability: InStock

Be the first to review this product

R 8 902,15 inc. vat

In stock

SKU

5743418

CoroMill® Plura solid carbide end mill for roughing with chip breaker

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® Plura solid carbide end mill for roughing with chip breaker

More Information

More Information
DCON - Connection Diameter	20mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	104mm
RPMX - Rotational Speed Maximum	800001/min
WT - Weight Of Item	0.413kg
OAL - Overall Length	104mm
OHX - Maximum Overhang	54mm
LSC - Clamping Length	50mm
KAPR - Tool Cutting Edge Angle	90deg
RMPX - Maximum Ramping Angle	5deg
RE - Corner Radius	0.4mm
H - Shank Height	18.2mm
LU - Usable Length	38mm
MHD - Mounting Hole Distance	25mm
APMX - Depth Of Cut Maximum	38mm
DC - Cutting Diameter	20mm
DCF - Cutting Diameter Face Contact	19.2mm
FHA - Flute Helix Angle	40deg
GAMF - Radial Rake Angle	10.5deg
GAMP - Axial Rake Angle	13.5deg
ULDR - Usable Length Diameter Ratio	1.9
ORDCODE	R216.34-20040-BC38K 1640
ADINTMS - Adaptive Interface Machine Direction	M_CYLW_G2000_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	2
CHANGEDATE	2022-04-22 09:42:00.000
STDLET - Standard Letter	HB
STDNO - Standard Number	DIN6535
Hand	R
TCDCON - Connection Diameter Tolerance	h6
Grade	1640
COATING	PVD TiAlN
SUBSTRATE	HC
BSG - Basic Standard Group	DIN 6527 L
ZEFP - Peripheral Effective Cutting Edge Count	4
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
CCC - Center Cutting Capability	True
CPDF - Cutting Pitch Differential	False
