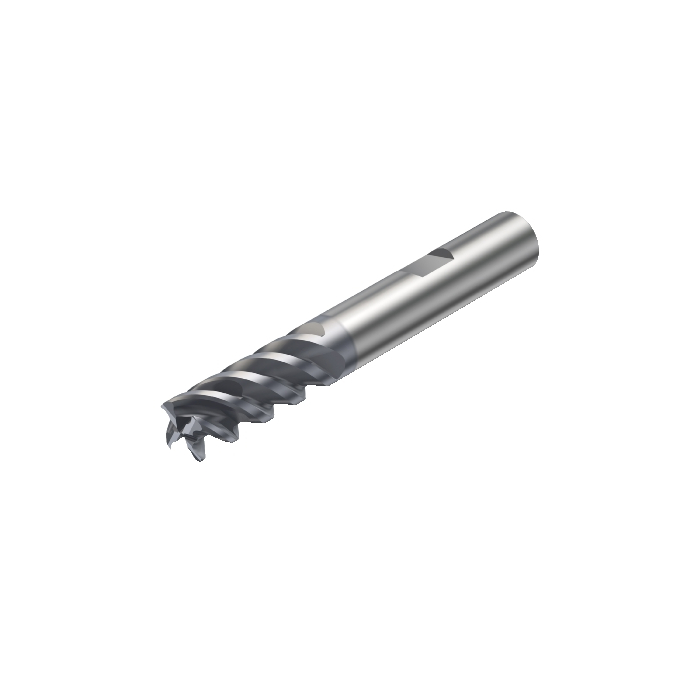

Sandvik Coromant R216.34-20050-BC38P 1620 CoroMill™ Plura solid carbide end mill for Stable Multi-Operations milling

R 7 765,95 inc. vat
In stock
SKU
5743438
CoroMill® Plura solid carbide end mill for Stable Multi-Operations milling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® Plura solid carbide end mill for Stable Multi-Operations milling
More Information
DCON - Connection Diameter 20mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 104mm
RPMX - Rotational Speed Maximum 800001/min
WT - Weight Of Item 0.425kg
OAL - Overall Length 104mm
OHX - Maximum Overhang 54mm
LSC - Clamping Length 50mm
KAPR - Tool Cutting Edge Angle 90deg
RMPX - Maximum Ramping Angle 5deg
H - Shank Height 18.2mm
LU - Usable Length 38mm
MHD - Mounting Hole Distance 25mm
APMX - Depth Of Cut Maximum 38mm
KCH - Corner Chamfer 45deg
CHW - Corner Chamfer Width 0.15mm
DC - Cutting Diameter 20mm
DCF - Cutting Diameter Face Contact 19.7mm
FHA - Flute Helix Angle 50deg
GAMF - Radial Rake Angle 10.5deg
GAMP - Axial Rake Angle 13.5deg
ULDR - Usable Length Diameter Ratio 1.9
ORDCODE R216.34-20050-BC38P 1620
ADINTMS - Adaptive Interface Machine Direction M_CYLW_G2000_1
CNSC - Coolant Entry Style Code 0
CXSC - Coolant Exit Style Code 0
BMC - Body Material Code 2
CHANGEDATE 2022-04-22 09:21:00.000
STDLET - Standard Letter HB
STDNO - Standard Number DIN6535
Hand R
TCDCON - Connection Diameter Tolerance h6
Grade 1620
COATING PVD TiAlN
SUBSTRATE HC
CBMD - Chip Breaker Manufacturer's Designation VFD
BSG - Basic Standard Group DIN 6527 L
ZEFP - Peripheral Effective Cutting Edge Count 4
NROTF - Non Rotating Functionality False
RTOF - Rotating Functionality True
CCC - Center Cutting Capability True
CPDF - Cutting Pitch Differential True
