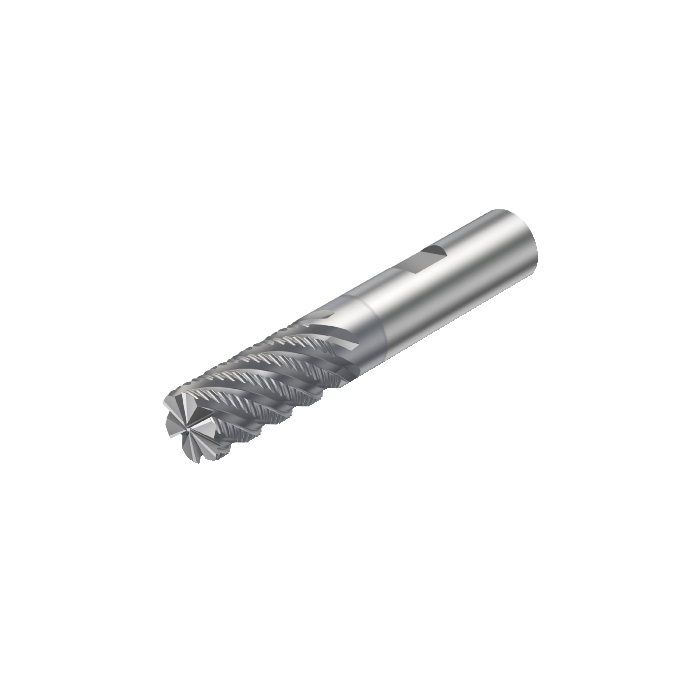

Sandvik Coromant R216.35-12045-BC28K 1640 CoroMill™ Plura solid carbide end mill for roughing with chip breaker

Name: Sandvik Coromant R216.35-12045-BC28K 1640 CoroMill™ Plura solid carbide end mill for roughing with chip breaker
SKU: 5743493
Price: 4099.75 ZAR
Availability: OutOfStock

Be the first to review this product

R 4 099,75 inc. vat

Out of stock

SKU

5743493

CoroMill® Plura solid carbide end mill for roughing with chip breaker

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® Plura solid carbide end mill for roughing with chip breaker

More Information

More Information
DCON - Connection Diameter	12mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	83mm
RPMX - Rotational Speed Maximum	800001/min
WT - Weight Of Item	0.132kg
OAL - Overall Length	83mm
OHX - Maximum Overhang	38mm
LSC - Clamping Length	45mm
KAPR - Tool Cutting Edge Angle	90deg
RMPX - Maximum Ramping Angle	3deg
RE - Corner Radius	0.4mm
H - Shank Height	10.4mm
LU - Usable Length	26mm
MHD - Mounting Hole Distance	22.5mm
APMX - Depth Of Cut Maximum	26mm
DC - Cutting Diameter	12mm
DCF - Cutting Diameter Face Contact	11.2mm
FHA - Flute Helix Angle	45deg
GAMF - Radial Rake Angle	-9deg
GAMP - Axial Rake Angle	2deg
ULDR - Usable Length Diameter Ratio	2.166666666667
ORDCODE	R216.35-12045-BC28K 1640
ADINTMS - Adaptive Interface Machine Direction	M_CYLW_G1200_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	2
CHANGEDATE	2022-04-22 09:12:00.000
STDLET - Standard Letter	HB
STDNO - Standard Number	ISO3338-2
Hand	R
TCDCON - Connection Diameter Tolerance	h6
Grade	1640
COATING	PVD TiAlN
SUBSTRATE	HC
BSG - Basic Standard Group	DIN 6527 L
ZEFP - Peripheral Effective Cutting Edge Count	5
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
CCC - Center Cutting Capability	True
CPDF - Cutting Pitch Differential	False
