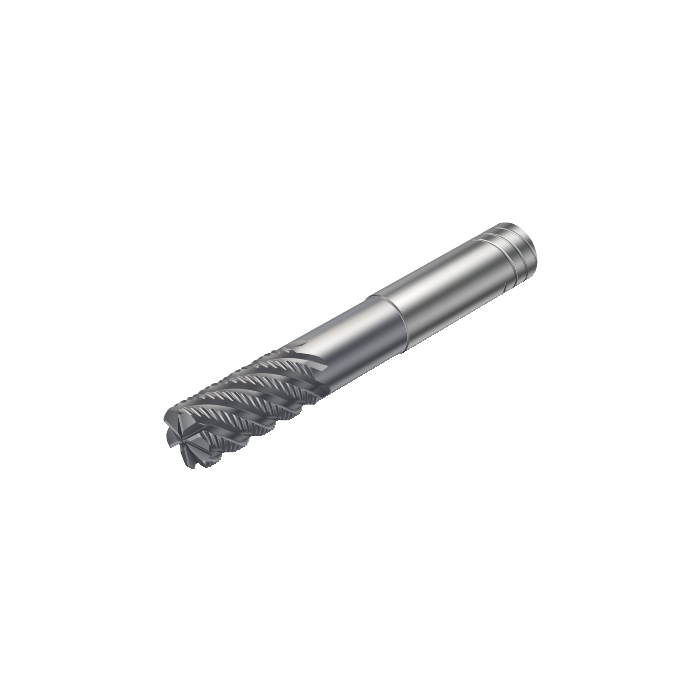

Sandvik Coromant R216.36-16045IYC32K 1640 CoroMill™ Plura solid carbide end mill for roughing with chip breaker

Name: Sandvik Coromant R216.36-16045IYC32K 1640 CoroMill™ Plura solid carbide end mill for roughing with chip breaker
SKU: 6153961
Price: 9528.90 ZAR
Availability: OutOfStock

Be the first to review this product

R 9 528,90 inc. vat

Out of stock

SKU

6153961

CoroMill® Plura solid carbide end mill for roughing with chip breaker

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® Plura solid carbide end mill for roughing with chip breaker

More Information

More Information
DCON - Connection Diameter	16mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	92mm
RPMX - Rotational Speed Maximum	800001/min
WT - Weight Of Item	0.251kg
OAL - Overall Length	92mm
OHX - Maximum Overhang	42mm
KAPR - Tool Cutting Edge Angle	90deg
RMPX - Maximum Ramping Angle	3deg
RE - Corner Radius	4mm
LU - Usable Length	42mm
APMX - Depth Of Cut Maximum	32mm
DC - Cutting Diameter	16mm
DCF - Cutting Diameter Face Contact	8mm
DN - Neck Diameter	15.2mm
FHA - Flute Helix Angle	45deg
GAMF - Radial Rake Angle	-9deg
GAMP - Axial Rake Angle	2deg
ULDR - Usable Length Diameter Ratio	2.625
ORDCODE	R216.36-16045IYC32K 1640
ADINTMS - Adaptive Interface Machine Direction	M_HAIM_G1600_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	2
CHANGEDATE	2022-08-24 01:09:00.000
Hand	R
TCDCON - Connection Diameter Tolerance	h6
Grade	1640
COATING	PVD TiCN
SUBSTRATE	HC
BSG - Basic Standard Group	DIN 6527 L
ZEFP - Peripheral Effective Cutting Edge Count	6
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
CCC - Center Cutting Capability	True
CPDF - Cutting Pitch Differential	False
