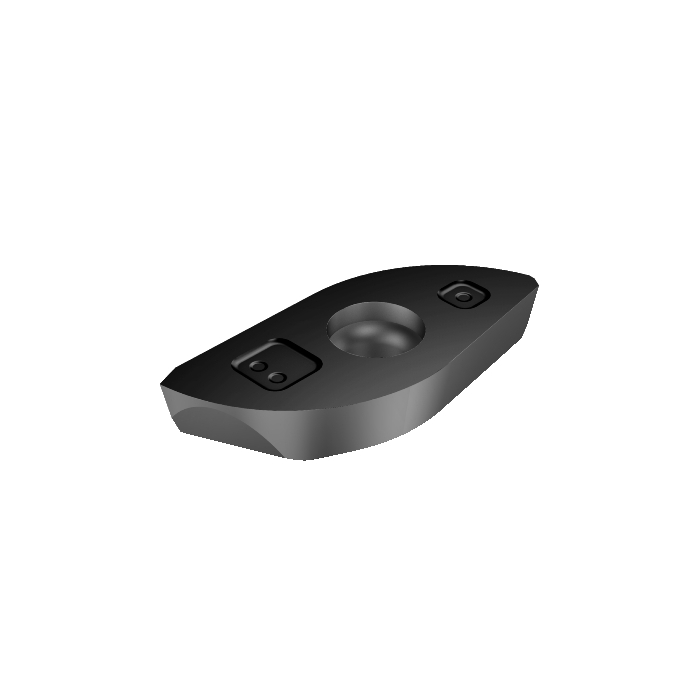

Sandvik Coromant R216-40 07 E-M 1130 CoroMill™ 216 ball nose insert
R 1 726,15
inc. vat
In stock
SKU
7100951
CoroMill® 216 ball nose insert
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 216 ball nose insert
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 0.049kg |
| AN - Clearance Angle Major | 9deg |
| Insert Thickness | 7.9375mm |
| D1 - Fixing Hole Diameter | 7mm |
| LE - Cutting Edge Effective Length | 36.5mm |
| GAN - Insert Rake Angle | 0deg |
| CEMR - Cutting Edge Major Radius | 19.66mm |
| ORDCODE | R216-40 07 E-M 1130 |
| CHANGEDATE | 2022-09-23 20:30:00.000 |
| Hand | R |
| IFS - Insert Mounting Style Code | 3 |
| SSC - Insert Seat Size Code | 40 |
| CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_MP4007_1 |
| Grade | 1130 |
| COATING | PVD AlTiCrN |
| SUBSTRATE | HC |
| CBMD - Chip Breaker Manufacturer's Designation | E-M |
| CEDC - Cutting Edge Count | 2 |
