Sandvik Coromant R216.42-01030-AP10G 1610 CoroMill™ Plura solid carbide ball nose end mill for Profiling

R 2 099,90 inc. vat
In stock
SKU
5743394

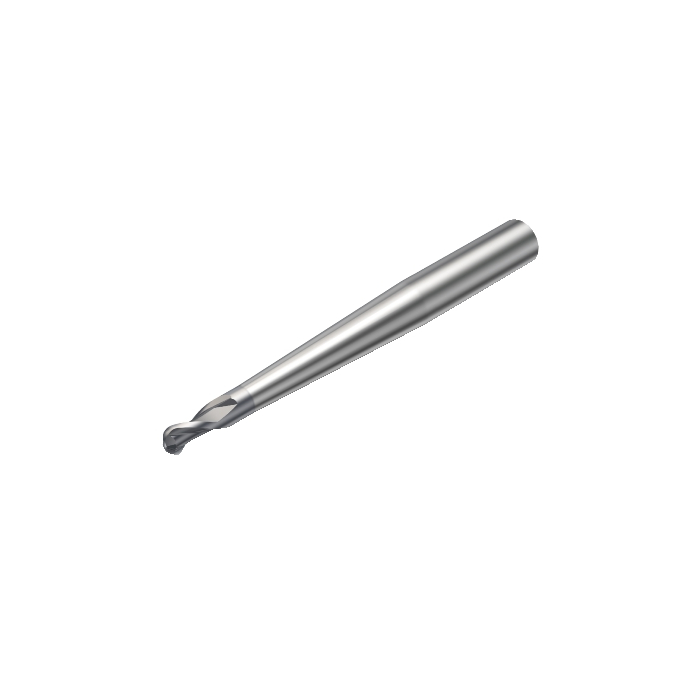

CoroMill® Plura solid carbide ball nose end mill for Profiling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® Plura solid carbide ball nose end mill for Profiling
More Information
DCON - Connection Diameter 6mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 80mm
BD - Body Diameter 4mm
LB - Body Length 42.07mm
BHTA - Body Half Taper Angle 10deg
RPMX - Rotational Speed Maximum 125541/min
WT - Weight Of Item 0.03kg
OAL - Overall Length 80mm
OHX - Maximum Overhang 44mm
RMPX - Maximum Ramping Angle 3deg
RE - Corner Radius 0.5mm
LU - Usable Length 1mm
APMX - Depth Of Cut Maximum 1mm
DC - Cutting Diameter 1mm
FHA - Flute Helix Angle 30deg
GAMF - Radial Rake Angle -5.5deg
GAMP - Axial Rake Angle 1.5deg
PSIR - Tool Lead Angle 0deg
ULDR - Usable Length Diameter Ratio 1
ORDCODE R216.42-01030-AP10G 1610
ADINTMS - Adaptive Interface Machine Direction M_CYLRD1_F6000_1
CNSC - Coolant Entry Style Code 0
CXSC - Coolant Exit Style Code 0
BMC - Body Material Code 2
CHANGEDATE 2021-12-21 04:06:00.000
STDLET - Standard Letter HA
STDNO - Standard Number DIN6535
Hand R
TCDCON - Connection Diameter Tolerance h5
Grade 1610
COATING PVD TiAlN
SUBSTRATE HC
CBMD - Chip Breaker Manufacturer's Designation STRAIGHT
BSG - Basic Standard Group COROMANT
ZEFP - Peripheral Effective Cutting Edge Count 2
NROTF - Non Rotating Functionality False
RTOF - Rotating Functionality True
CPDF - Cutting Pitch Differential False
