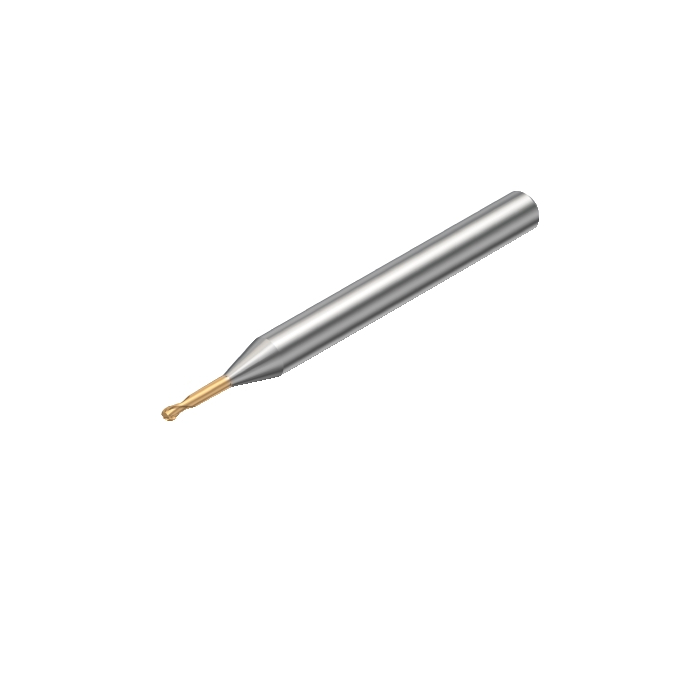

Sandvik Coromant R216.42-01030-EC10G 1700 CoroMill™ Plura solid carbide ball nose end mill for micro-milling
R 2 095,30
inc. vat
In stock
SKU
5963285
CoroMill® Plura solid carbide ball nose end mill for micro-milling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® Plura solid carbide ball nose end mill for micro-milling
DCON - Connection Diameter | 6mm |
---|---|
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 45mm |
BD - Body Diameter | 0.96mm |
LB - Body Length | 1.5mm |
BHTA - Body Half Taper Angle | 0deg |
RPMX - Rotational Speed Maximum | 800001/min |
WT - Weight Of Item | 0.02kg |
OAL - Overall Length | 45mm |
OHX - Maximum Overhang | 9mm |
RMPX - Maximum Ramping Angle | 15deg |
RE - Corner Radius | 0.5mm |
LU - Usable Length | 1.5mm |
APMX - Depth Of Cut Maximum | 0.8mm |
DC - Cutting Diameter | 1mm |
DN - Neck Diameter | 0.96mm |
FHA - Flute Helix Angle | 30deg |
GAMF - Radial Rake Angle | -6deg |
GAMP - Axial Rake Angle | 1.5deg |
PSIR - Tool Lead Angle | 0deg |
ULDR - Usable Length Diameter Ratio | 1.5 |
ORDCODE | R216.42-01030-EC10G 1700 |
ADINTMS - Adaptive Interface Machine Direction | M_CYLRD1_F6000_1 |
CNSC - Coolant Entry Style Code | 0 |
CXSC - Coolant Exit Style Code | 0 |
BMC - Body Material Code | 2 |
CHANGEDATE | 2021-12-21 04:36:00.000 |
STDLET - Standard Letter | HA |
STDNO - Standard Number | DIN6535 |
Hand | R |
TCDCON - Connection Diameter Tolerance | h5 |
Grade | 1700 |
COATING | PVD AlCrN |
SUBSTRATE | HC |
CBMD - Chip Breaker Manufacturer's Designation | STRAIGHT |
BSG - Basic Standard Group | COROMANT |
ZEFP - Peripheral Effective Cutting Edge Count | 2 |
NROTF - Non Rotating Functionality | False |
RTOF - Rotating Functionality | True |
CPDF - Cutting Pitch Differential | False |
