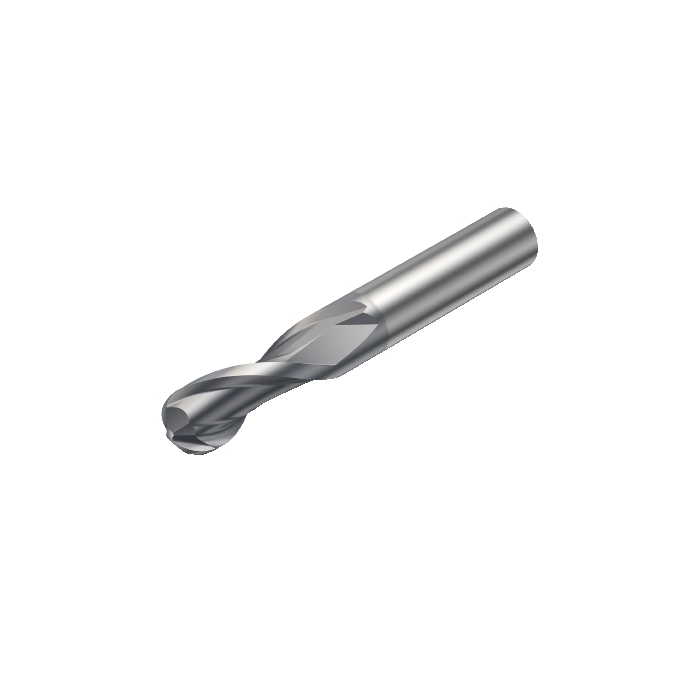

Sandvik Coromant R216.42-02030-AC30G 1610 CoroMill™ Plura solid carbide ball nose end mill for Profiling

Name: Sandvik Coromant R216.42-02030-AC30G 1610 CoroMill™ Plura solid carbide ball nose end mill for Profiling
SKU: 5743446
Price: 1580.10 ZAR
Availability: InStock

Be the first to review this product

R 1 580,10 inc. vat

In stock

SKU

5743446

CoroMill® Plura solid carbide ball nose end mill for Profiling

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® Plura solid carbide ball nose end mill for Profiling

More Information

More Information
DCON - Connection Diameter	6mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	57mm
BHTA - Body Half Taper Angle	30deg
RPMX - Rotational Speed Maximum	800001/min
WT - Weight Of Item	31.1g
OAL - Overall Length	57mm
OHX - Maximum Overhang	21mm
RMPX - Maximum Ramping Angle	3deg
RE - Corner Radius	1mm
LU - Usable Length	3mm
APMX - Depth Of Cut Maximum	3mm
DC - Cutting Diameter	2mm
FHA - Flute Helix Angle	30deg
GAMF - Radial Rake Angle	-5.5deg
GAMP - Axial Rake Angle	1.5deg
PSIR - Tool Lead Angle	0deg
ULDR - Usable Length Diameter Ratio	1.5
ORDCODE	R216.42-02030-AC30G 1610
ADINTMS - Adaptive Interface Machine Direction	M_CYLRD1_F6000_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	2
CHANGEDATE	2021-12-21 04:07:00.000
STDLET - Standard Letter	HA
STDNO - Standard Number	DIN6535
Hand	R
TCDCON - Connection Diameter Tolerance	h5
Grade	1610
COATING	PVD TiAlN
SUBSTRATE	HC
CBMD - Chip Breaker Manufacturer's Designation	STRAIGHT
BSG - Basic Standard Group	COROMANT
ZEFP - Peripheral Effective Cutting Edge Count	2
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
CPDF - Cutting Pitch Differential	False
