Sandvik Coromant R216.42-04030-AS06G 1700 CoroMill™ Plura solid carbide ball nose end mill for Profiling

Name: Sandvik Coromant R216.42-04030-AS06G 1700 CoroMill™ Plura solid carbide ball nose end mill for Profiling
SKU: 5963310
Price: 1750.30 ZAR
Availability: InStock

Be the first to review this product

R 1 750,30 inc. vat

In stock

SKU

5963310

CoroMill® Plura solid carbide ball nose end mill for Profiling

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

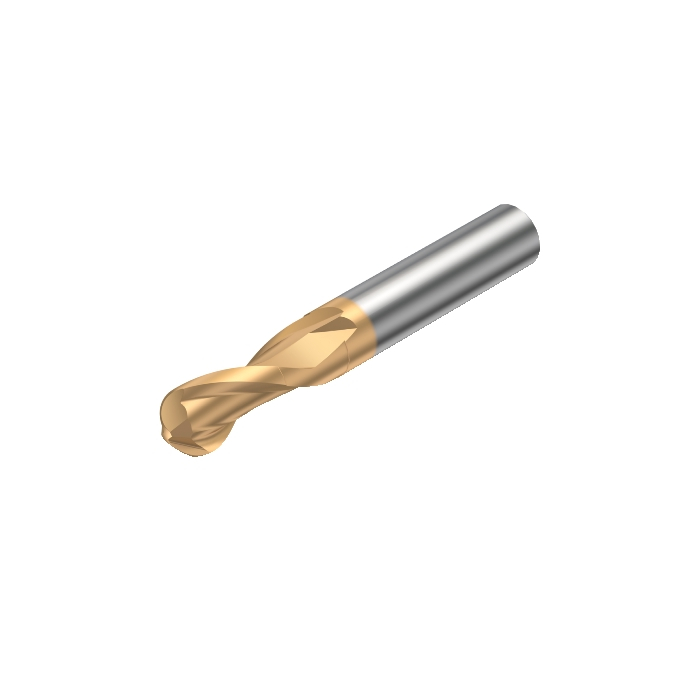

CoroMill® Plura solid carbide ball nose end mill for Profiling

More Information

More Information
DCON - Connection Diameter	6mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	57mm
LB - Body Length	7mm
BHTA - Body Half Taper Angle	0deg
RPMX - Rotational Speed Maximum	800001/min
WT - Weight Of Item	0.025kg
OAL - Overall Length	57mm
OHX - Maximum Overhang	21mm
RMPX - Maximum Ramping Angle	15deg
RE - Corner Radius	2mm
LU - Usable Length	6mm
APMX - Depth Of Cut Maximum	6mm
DC - Cutting Diameter	4mm
FHA - Flute Helix Angle	30deg
GAMF - Radial Rake Angle	-6deg
GAMP - Axial Rake Angle	1.5deg
PSIR - Tool Lead Angle	0deg
ULDR - Usable Length Diameter Ratio	1.5
DCTOLL - Lower Cutting Diameter Tolerance	-0.01mm
DCTOLU - Upper Cutting Diameter Tolerance	0mm
ORDCODE	R216.42-04030-AS06G 1700
ADINTMS - Adaptive Interface Machine Direction	M_CYLRD1_F6000_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	2
CHANGEDATE	2021-12-21 04:10:00.000
STDLET - Standard Letter	HA
STDNO - Standard Number	DIN6535
Hand	R
TCDCON - Connection Diameter Tolerance	h5
Grade	1700
COATING	PVD AlCrN
SUBSTRATE	HC
CBMD - Chip Breaker Manufacturer's Designation	STRAIGHT
BSG - Basic Standard Group	COROMANT
ZEFP - Peripheral Effective Cutting Edge Count	2
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
CPDF - Cutting Pitch Differential	False
