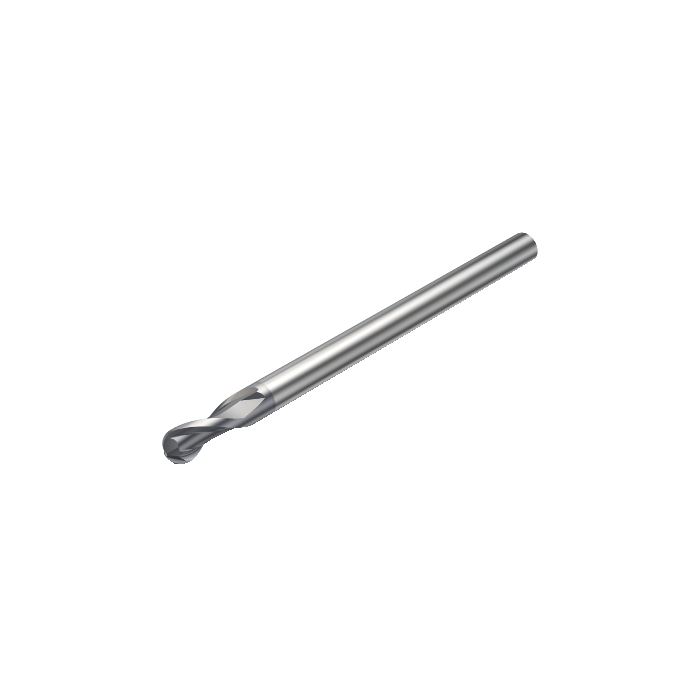

Sandvik Coromant R216.42-06030-AQ09G P10 CoroMill™ Plura solid carbide ball nose end mill for Profiling

Name: Sandvik Coromant R216.42-06030-AQ09G P10 CoroMill™ Plura solid carbide ball nose end mill for Profiling
SKU: 5743460
Price: 2486.30 ZAR
Availability: InStock

Be the first to review this product

R 2 486,30 inc. vat

In stock

SKU

5743460

CoroMill® Plura solid carbide ball nose end mill for Profiling

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® Plura solid carbide ball nose end mill for Profiling

More Information

More Information
DCON - Connection Diameter	6mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	125mm
RPMX - Rotational Speed Maximum	800001/min
WT - Weight Of Item	0.063kg
OAL - Overall Length	125mm
OHX - Maximum Overhang	89mm
RMPX - Maximum Ramping Angle	15deg
RE - Corner Radius	3mm
LU - Usable Length	9mm
APMX - Depth Of Cut Maximum	9mm
DC - Cutting Diameter	6mm
FHA - Flute Helix Angle	30deg
GAMF - Radial Rake Angle	-5.5deg
GAMP - Axial Rake Angle	1.5deg
PSIR - Tool Lead Angle	0deg
ULDR - Usable Length Diameter Ratio	1.5
ORDCODE	R216.42-06030-AQ09G P10
ADINTMS - Adaptive Interface Machine Direction	M_CYLRD1_F6000_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	2
CHANGEDATE	2021-12-21 04:07:00.000
STDLET - Standard Letter	HA
STDNO - Standard Number	DIN6535
Hand	R
TCDCON - Connection Diameter Tolerance	h6
Grade	P10
COATING	PVD TiAlN
SUBSTRATE	HC
CBMD - Chip Breaker Manufacturer's Designation	STRAIGHT
BSG - Basic Standard Group	COROMANT
ZEFP - Peripheral Effective Cutting Edge Count	2
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
CPDF - Cutting Pitch Differential	False
