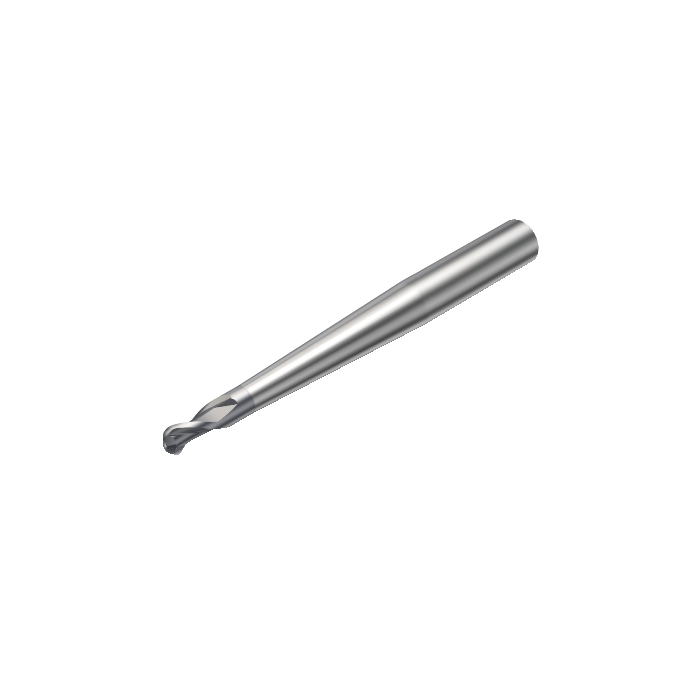

Sandvik Coromant R216.42-10030-AP10G 1610 CoroMill™ Plura solid carbide ball nose end mill for Profiling

R 3 906,55 inc. vat
In stock
SKU
5743540
CoroMill® Plura solid carbide ball nose end mill for Profiling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® Plura solid carbide ball nose end mill for Profiling
More Information
DCON - Connection Diameter 14mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 125mm
BHTA - Body Half Taper Angle 2.5deg
RPMX - Rotational Speed Maximum 800001/min
WT - Weight Of Item 0.264kg
OAL - Overall Length 125mm
OHX - Maximum Overhang 80mm
RMPX - Maximum Ramping Angle 3deg
RE - Corner Radius 5mm
LU - Usable Length 10mm
APMX - Depth Of Cut Maximum 10mm
DC - Cutting Diameter 10mm
FHA - Flute Helix Angle 30deg
GAMF - Radial Rake Angle -5.5deg
GAMP - Axial Rake Angle 1.5deg
PSIR - Tool Lead Angle 0deg
ULDR - Usable Length Diameter Ratio 1
ORDCODE R216.42-10030-AP10G 1610
ADINTMS - Adaptive Interface Machine Direction M_CYLRD1_G1400_1
CNSC - Coolant Entry Style Code 0
CXSC - Coolant Exit Style Code 0
BMC - Body Material Code 2
CHANGEDATE 2021-12-21 04:09:00.000
STDLET - Standard Letter HA
STDNO - Standard Number DIN6535
Hand R
TCDCON - Connection Diameter Tolerance h6
Grade 1610
COATING PVD TiAlN
SUBSTRATE HC
CBMD - Chip Breaker Manufacturer's Designation STRAIGHT
BSG - Basic Standard Group COROMANT
ZEFP - Peripheral Effective Cutting Edge Count 2
NROTF - Non Rotating Functionality False
RTOF - Rotating Functionality True
CPDF - Cutting Pitch Differential False
