Sandvik Coromant R216.42-12030-AC22G 1610 CoroMill™ Plura solid carbide ball nose end mill for Profiling
R 4 154,95
inc. vat
In stock
SKU
5743552
CoroMill® Plura solid carbide ball nose end mill for Profiling
Reliable nationwide shipping
Delivery in 4 - 5 days

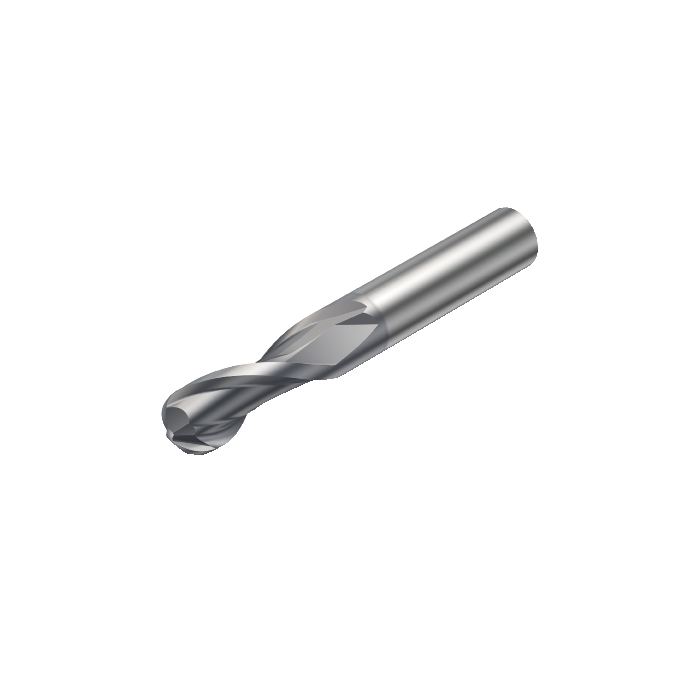

CoroMill® Plura solid carbide ball nose end mill for Profiling
| DCON - Connection Diameter | 12mm |
|---|---|
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 83mm |
| RPMX - Rotational Speed Maximum | 800001/min |
| WT - Weight Of Item | 0.144kg |
| OAL - Overall Length | 83mm |
| OHX - Maximum Overhang | 38mm |
| RMPX - Maximum Ramping Angle | 3deg |
| RE - Corner Radius | 6mm |
| LU - Usable Length | 22mm |
| APMX - Depth Of Cut Maximum | 22mm |
| DC - Cutting Diameter | 12mm |
| FHA - Flute Helix Angle | 30deg |
| GAMF - Radial Rake Angle | -5.5deg |
| GAMP - Axial Rake Angle | 1.5deg |
| PSIR - Tool Lead Angle | 0deg |
| ULDR - Usable Length Diameter Ratio | 1.833333333333 |
| ORDCODE | R216.42-12030-AC22G 1610 |
| ADINTMS - Adaptive Interface Machine Direction | M_CYLRD1_G1200_1 |
| CNSC - Coolant Entry Style Code | 0 |
| CXSC - Coolant Exit Style Code | 0 |
| BMC - Body Material Code | 2 |
| CHANGEDATE | 2021-12-21 04:09:00.000 |
| STDLET - Standard Letter | HA |
| STDNO - Standard Number | DIN6535 |
| Hand | R |
| TCDCON - Connection Diameter Tolerance | h6 |
| Grade | 1610 |
| COATING | PVD TiAlN |
| SUBSTRATE | HC |
| CBMD - Chip Breaker Manufacturer's Designation | STRAIGHT |
| BSG - Basic Standard Group | COROMANT |
| ZEFP - Peripheral Effective Cutting Edge Count | 2 |
| NROTF - Non Rotating Functionality | False |
| RTOF - Rotating Functionality | True |
| CPDF - Cutting Pitch Differential | False |
