Sandvik Coromant R216.42-12030-AQ18G P10 CoroMill™ Plura solid carbide ball nose end mill for Profiling

R 5 667,20 inc. vat
In stock
SKU
5743521

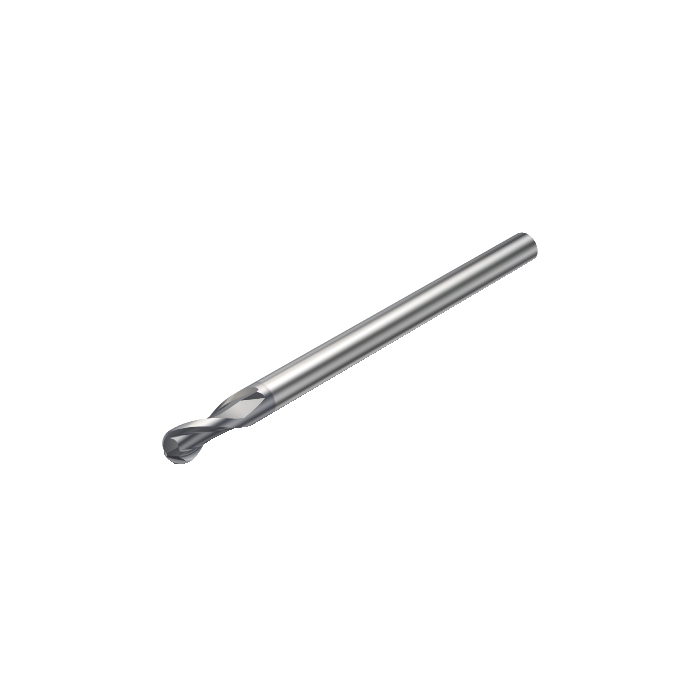

CoroMill® Plura solid carbide ball nose end mill for Profiling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® Plura solid carbide ball nose end mill for Profiling
More Information
DCON - Connection Diameter 12mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 150mm
RPMX - Rotational Speed Maximum 800001/min
WT - Weight Of Item 0.142kg
OAL - Overall Length 150mm
OHX - Maximum Overhang 105mm
RMPX - Maximum Ramping Angle 15deg
RE - Corner Radius 6mm
LU - Usable Length 18mm
APMX - Depth Of Cut Maximum 18mm
DC - Cutting Diameter 12mm
FHA - Flute Helix Angle 30deg
GAMF - Radial Rake Angle -5.5deg
GAMP - Axial Rake Angle 1.5deg
PSIR - Tool Lead Angle 0deg
ULDR - Usable Length Diameter Ratio 1.5
ORDCODE R216.42-12030-AQ18G P10
ADINTMS - Adaptive Interface Machine Direction M_CYLRD1_G1200_1
CNSC - Coolant Entry Style Code 0
CXSC - Coolant Exit Style Code 0
BMC - Body Material Code 2
CHANGEDATE 2021-12-21 04:08:00.000
STDLET - Standard Letter HA
STDNO - Standard Number DIN6535
Hand R
TCDCON - Connection Diameter Tolerance h6
Grade P10
COATING PVD TiAlN
SUBSTRATE HC
CBMD - Chip Breaker Manufacturer's Designation STRAIGHT
BSG - Basic Standard Group COROMANT
ZEFP - Peripheral Effective Cutting Edge Count 2
NROTF - Non Rotating Functionality False
RTOF - Rotating Functionality True
CPDF - Cutting Pitch Differential False
