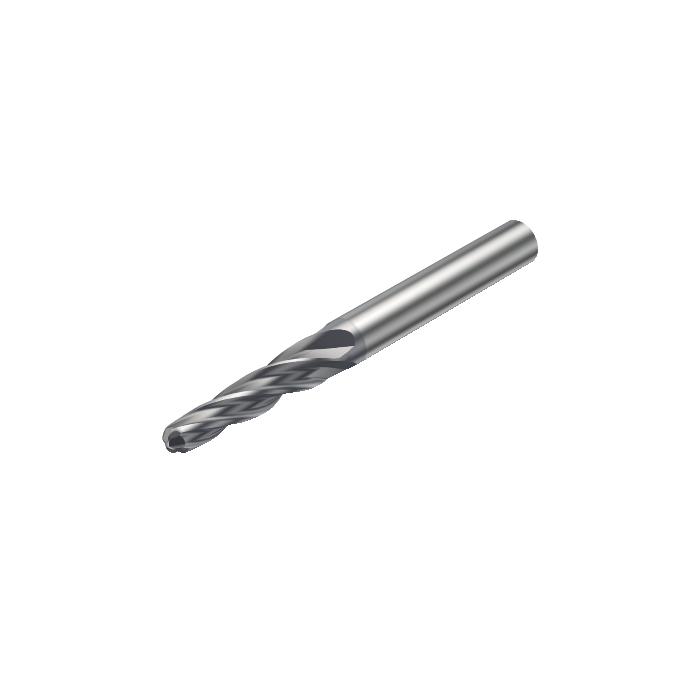

Sandvik Coromant R216.54-10040RAL40G 1620 CoroMill™ Plura solid carbide ball nose end mill for Profiling

R 3 248,75 inc. vat
Out of stock
SKU
5743599
CoroMill® Plura solid carbide ball nose end mill for Profiling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® Plura solid carbide ball nose end mill for Profiling
More Information
DCON - Connection Diameter 14mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 115mm
LB - Body Length 42.55mm
BHTA - Body Half Taper Angle 3deg
RPMX - Rotational Speed Maximum 800001/min
WT - Weight Of Item 0.226kg
OAL - Overall Length 115mm
OHX - Maximum Overhang 67mm
RMPX - Maximum Ramping Angle 15deg
RE - Corner Radius 5mm
LU - Usable Length 40mm
APMX - Depth Of Cut Maximum 40mm
DC - Cutting Diameter 9.9862953475457mm
FHA - Flute Helix Angle 40deg
GAMF - Radial Rake Angle 2deg
GAMP - Axial Rake Angle 12deg
PSIR - Tool Lead Angle 3deg
ULDR - Usable Length Diameter Ratio 4.005489383992
ORDCODE R216.54-10040RAL40G 1620
ADINTMS - Adaptive Interface Machine Direction M_CYLRD1_G1400_1
CNSC - Coolant Entry Style Code 0
CXSC - Coolant Exit Style Code 0
BMC - Body Material Code 2
CHANGEDATE 2021-12-21 04:22:00.000
STDLET - Standard Letter HA
STDNO - Standard Number DIN6535
Hand R
TCDCON - Connection Diameter Tolerance h6
Grade 1620
COATING PVD TiAlN
SUBSTRATE HC
CBMD - Chip Breaker Manufacturer's Designation STRAIGHT
BSG - Basic Standard Group COROMANT
ZEFP - Peripheral Effective Cutting Edge Count 4
NROTF - Non Rotating Functionality False
RTOF - Rotating Functionality True
CPDF - Cutting Pitch Differential False
