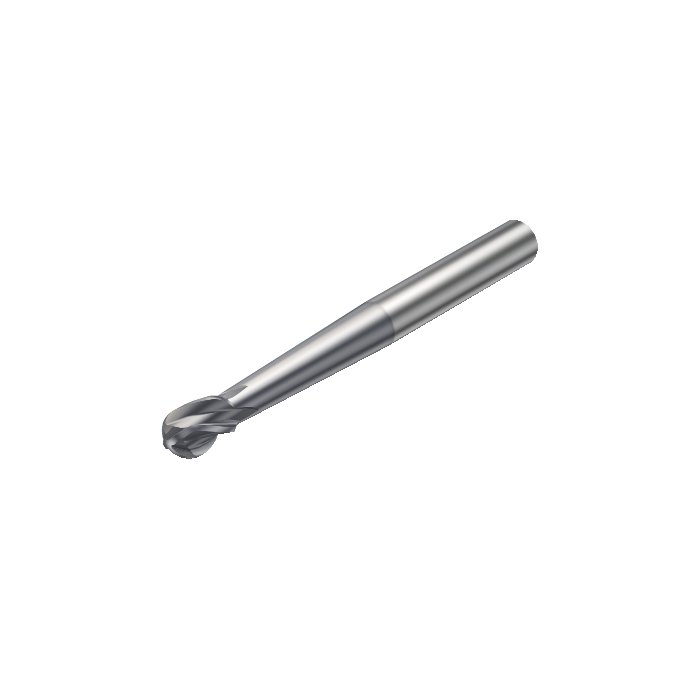

Sandvik Coromant R216.64-06030-AO07G 1610 CoroMill™ Plura solid carbide ball nose end mill for Profiling
R 2 098,75
inc. vat
In stock
SKU
5743651
CoroMill® Plura solid carbide ball nose end mill for Profiling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® Plura solid carbide ball nose end mill for Profiling
DCON - Connection Diameter | 6mm |
---|---|
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 100mm |
RPMX - Rotational Speed Maximum | 800001/min |
WT - Weight Of Item | 0.051kg |
OAL - Overall Length | 100mm |
OHX - Maximum Overhang | 64mm |
LSC - Clamping Length | 36mm |
RMPX - Maximum Ramping Angle | 3deg |
RE - Corner Radius | 3mm |
LU - Usable Length | 30mm |
APMX - Depth Of Cut Maximum | 7mm |
DC - Cutting Diameter | 6mm |
DN - Neck Diameter | 4.7mm |
FHA - Flute Helix Angle | 30deg |
GAMF - Radial Rake Angle | -5.5deg |
GAMP - Axial Rake Angle | 1.5deg |
DCX - Maximum Cutting Diameter | 6mm |
PSIR - Tool Lead Angle | 0deg |
ULDR - Usable Length Diameter Ratio | 5 |
PCL - Peripheral Cylindrical Length | 2.135mm |
ORDCODE | R216.64-06030-AO07G 1610 |
ADINTMS - Adaptive Interface Machine Direction | M_CYLRD1_F6000_1 |
CNSC - Coolant Entry Style Code | 0 |
CXSC - Coolant Exit Style Code | 0 |
BMC - Body Material Code | 2 |
CHANGEDATE | 2021-12-21 04:10:00.000 |
STDLET - Standard Letter | HA |
STDNO - Standard Number | DIN6535 |
Hand | R |
TCDCON - Connection Diameter Tolerance | h5 |
Grade | 1610 |
COATING | PVD TiAlN |
SUBSTRATE | HC |
CBMD - Chip Breaker Manufacturer's Designation | STRAIGHT |
BSG - Basic Standard Group | COROMANT |
ZEFP - Peripheral Effective Cutting Edge Count | 4 |
NROTF - Non Rotating Functionality | False |
RTOF - Rotating Functionality | True |
CPDF - Cutting Pitch Differential | False |
