R 1 099,40
inc. vat
In stock
SKU
5743753

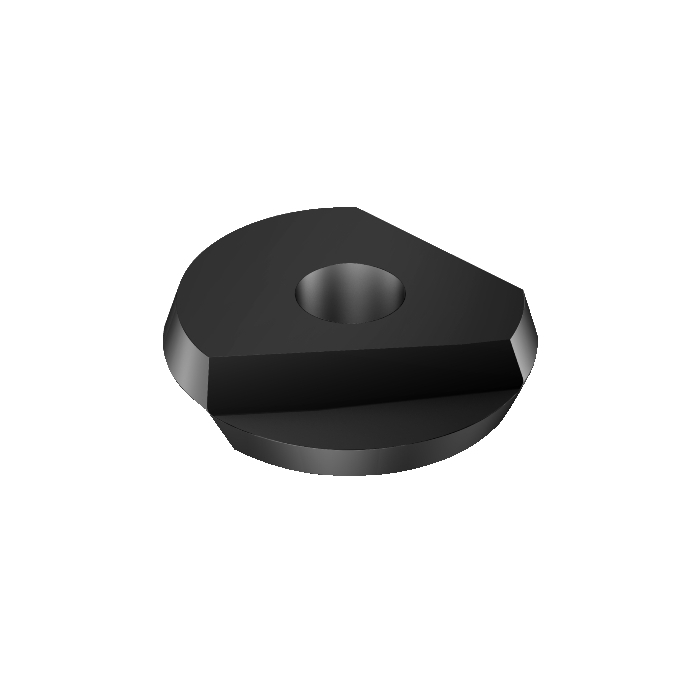

CoroMill® 216F ball nose insert
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 216F ball nose insert
KAP - Kappa (z-axis Rot) | 0deg |
---|---|
WT - Weight Of Item | 1.2g |
IC - Inscribed Circle Diameter | 8mm |
RE - Corner Radius | 4mm |
Insert Thickness | 2.4mm |
D1 - Fixing Hole Diameter | 2.5mm |
GAN - Insert Rake Angle | 0deg |
APMX - Depth Of Cut Maximum | 4mm |
DC - Cutting Diameter | 8mm |
DCF - Cutting Diameter Face Contact | 0mm |
ORDCODE | R216F-08 24 E-L 1010 |
CHANGEDATE | 2022-06-23 10:45:00.000 |
Hand | R |
IFS - Insert Mounting Style Code | 3 |
SC - Insert Shape Code | R |
SSC - Insert Seat Size Code | 08 |
CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_MR0824_1 |
Grade | 1010 |
COATING | PVD TiAlN |
SUBSTRATE | HC |
CBMD - Chip Breaker Manufacturer's Designation | L |
CEDC - Cutting Edge Count | 1 |
