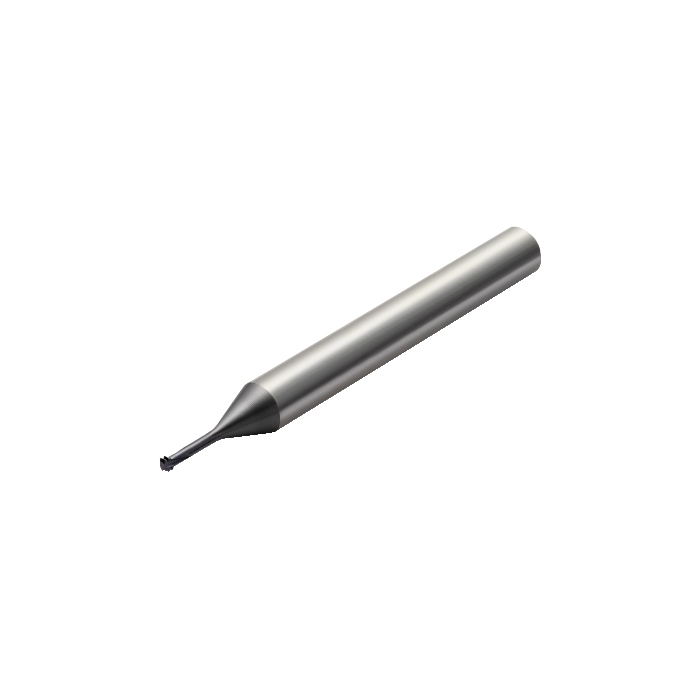

Sandvik Coromant R217.14-048100AC12S 1610 CoroMill™ Plura solid carbide end mill for thread milling
Next
Sandvik Coromant R217.13-040080AC15P H07F CoroMill™ Plura solid carbide end mill for thread milling
Previous
![Sandvik Coromant R217.14-048100AC12S 1610 CoroMill™ Plura solid carbide end mill for thread milling](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/67097a7cd/sandvik-coromant-r217-14-048100ac12s-1610-coromilltm-plura-solid-carbide-end-mill-for-thread-milling.jpg)
![Sandvik Coromant R217.13-040080AC15P H07F CoroMill™ Plura solid carbide end mill for thread milling](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/66934c75b/sandvik-coromant-r217-13-040080ac15p-h07f-coromilltm-plura-solid-carbide-end-mill-for-thread-milling.jpg)
R 4 190,60
inc. vat
In stock
SKU
6424157
CoroMill® Plura solid carbide end mill for thread milling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® Plura solid carbide end mill for thread milling
DCON - Connection Diameter | 6mm |
---|---|
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 60mm |
BD - Body Diameter | 3.4mm |
BHTA - Body Half Taper Angle | 0deg |
RPMX - Rotational Speed Maximum | 800001/min |
WT - Weight Of Item | 0.028kg |
OAL - Overall Length | 60mm |
OHX - Maximum Overhang | 24mm |
KAPR - Tool Cutting Edge Angle | 30deg |
LU - Usable Length | 19.5mm |
APMX - Depth Of Cut Maximum | 2.5mm |
TP - Thread Pitch | 1mm |
TG - Taper Gradient | 0 |
DC - Cutting Diameter | 2.6mm |
DN - Neck Diameter | 3.4mm |
FHA - Flute Helix Angle | 15deg |
GAMF - Radial Rake Angle | 7.5deg |
ORDCODE | R217.13-048100AC18P H07F |
ADINTMS - Adaptive Interface Machine Direction | M_CYLRD1_F6000_1 |
CNSC - Coolant Entry Style Code | 0 |
CXSC - Coolant Exit Style Code | 0 |
BMC - Body Material Code | 2 |
CHANGEDATE | 2021-12-21 08:40:00.000 |
STDLET - Standard Letter | HA |
STDNO - Standard Number | DIN6535 |
Hand | R |
TCDCON - Connection Diameter Tolerance | h6 |
Grade | H07F |
SUBSTRATE | HW |
THFT - Thread Form Type | M60 |
TPT - Thread Profile Type | F |
TTP - Thread Type | INT |
BSG - Basic Standard Group | COROMANT |
ZEFP - Peripheral Effective Cutting Edge Count | 3 |
NROTF - Non Rotating Functionality | False |
RTOF - Rotating Functionality | True |
CPDF - Cutting Pitch Differential | False |
