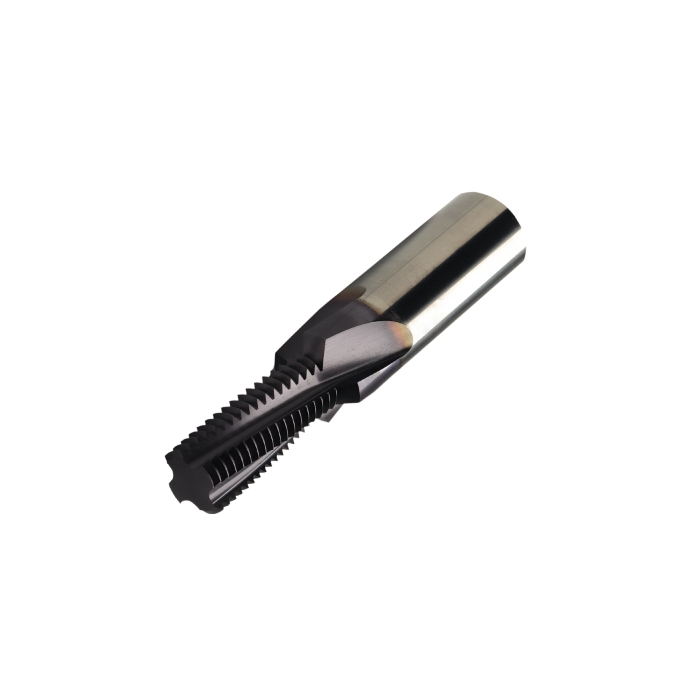

CoroMill® Plura solid carbide end mill for thread milling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® Plura solid carbide end mill for thread milling
CP - Coolant Pressure | 2000000Pa |
---|---|
DCON - Connection Diameter | 14mm |
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 57mm |
BD - Body Diameter | 14mm |
LB - Body Length | 26mm |
BHTA - Body Half Taper Angle | 0deg |
RPMX - Rotational Speed Maximum | 800001/min |
WT - Weight Of Item | 0.158kg |
OAL - Overall Length | 83mm |
OHX - Maximum Overhang | 38mm |
KAPR - Tool Cutting Edge Angle | 45deg |
LU - Usable Length | 27mm |
APMX - Depth Of Cut Maximum | 26mm |
TP - Thread Pitch | 1.75mm |
TG - Taper Gradient | 0 |
DC - Cutting Diameter | 9.9mm |
DN - Neck Diameter | 14mm |
FHA - Flute Helix Angle | 10deg |
GAMF - Radial Rake Angle | 1.5deg |
DCX - Maximum Cutting Diameter | 14mm |
SIGCSK - Countersink Angle | 90deg |
ORDCODE | R217.14C099175CC26K 1630 |
ADINTMS - Adaptive Interface Machine Direction | M_CYLRD1_G1400_1 |
CNSC - Coolant Entry Style Code | 1 |
CXSC - Coolant Exit Style Code | 1 |
BMC - Body Material Code | 2 |
CHANGEDATE | 2021-12-21 07:55:00.000 |
STDLET - Standard Letter | HA |
STDNO - Standard Number | DIN6535 |
Hand | R |
TCDCON - Connection Diameter Tolerance | h6 |
Grade | 1630 |
COATING | PVD TiAlN |
SUBSTRATE | HC |
THFT - Thread Form Type | M60 |
TPT - Thread Profile Type | F |
TTP - Thread Type | INT |
BSG - Basic Standard Group | COROMANT |
ZEFP - Peripheral Effective Cutting Edge Count | 4 |
NROTF - Non Rotating Functionality | False |
RTOF - Rotating Functionality | True |
CPDF - Cutting Pitch Differential | False |
