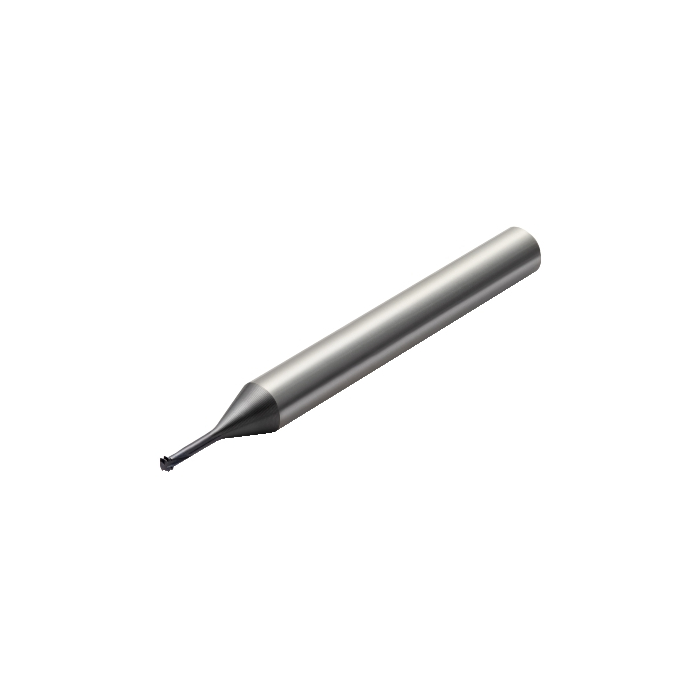

Sandvik Coromant R217.33-016560AC06P 1620 CoroMill™ Plura solid carbide end mill for thread milling

Name: Sandvik Coromant R217.33-016560AC06P 1620 CoroMill™ Plura solid carbide end mill for thread milling
SKU: 6416866
Price: 3599.50 ZAR
Availability: InStock

Be the first to review this product

R 3 599,50 inc. vat

In stock

SKU

6416866

CoroMill® Plura solid carbide end mill for thread milling

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® Plura solid carbide end mill for thread milling

More Information

More Information
DCON - Connection Diameter	6mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	57mm
BD - Body Diameter	0.95mm
BHTA - Body Half Taper Angle	0deg
RPMX - Rotational Speed Maximum	800001/min
WT - Weight Of Item	0.028kg
OAL - Overall Length	57mm
OHX - Maximum Overhang	21mm
KAPR - Tool Cutting Edge Angle	30deg
LU - Usable Length	7.25mm
APMX - Depth Of Cut Maximum	0.681mm
TPI - Threads Per Inch	56
TG - Taper Gradient	0
DC - Cutting Diameter	0.68mm
DN - Neck Diameter	0.95mm
FHA - Flute Helix Angle	15deg
GAMF - Radial Rake Angle	7.5deg
ORDCODE	R217.33-016560AC06P 1620
ADINTMS - Adaptive Interface Machine Direction	M_CYLRD1_F6000_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	2
CHANGEDATE	2022-07-11 09:04:00.000
STDLET - Standard Letter	HA
STDNO - Standard Number	DIN6535
Hand	R
TCDCON - Connection Diameter Tolerance	h6
Grade	1620
COATING	PVD AlCrN
SUBSTRATE	HC
THFT - Thread Form Type	UN60
TPT - Thread Profile Type	F
TTP - Thread Type	INT
BSG - Basic Standard Group	COROMANT
ZEFP - Peripheral Effective Cutting Edge Count	3
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
CPDF - Cutting Pitch Differential	False
