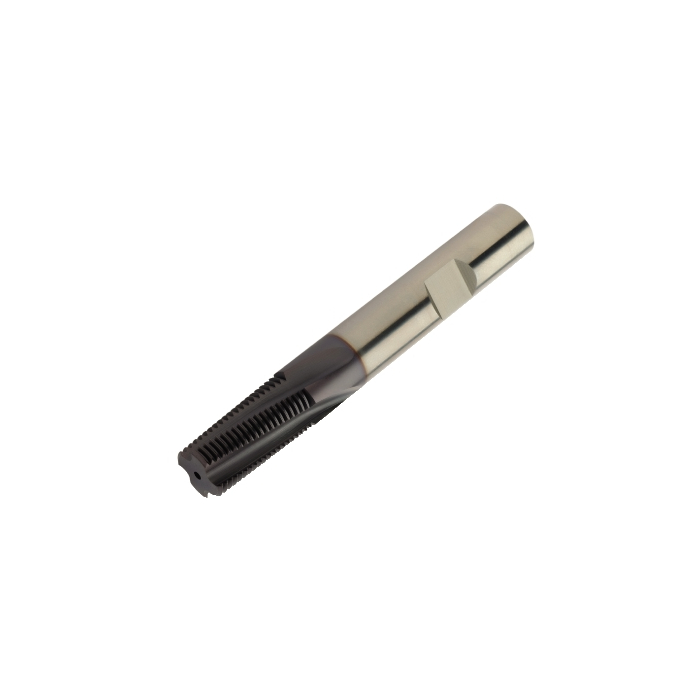

Sandvik Coromant R217.93-060280BC15N 1630 CoroMill™ Plura solid carbide end mill for thread milling

Name: Sandvik Coromant R217.93-060280BC15N 1630 CoroMill™ Plura solid carbide end mill for thread milling
SKU: 6251184
Price: 4410.25 ZAR
Availability: InStock

Be the first to review this product

R 4 410,25 inc. vat

In stock

SKU

6251184

CoroMill® Plura solid carbide end mill for thread milling

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® Plura solid carbide end mill for thread milling

More Information

More Information
DCON - Connection Diameter	6mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	57mm
RPMX - Rotational Speed Maximum	800001/min
WT - Weight Of Item	0.03kg
OAL - Overall Length	57mm
OHX - Maximum Overhang	21mm
LSC - Clamping Length	36mm
H - Shank Height	4.8mm
LU - Usable Length	15.4mm
MHD - Mounting Hole Distance	18mm
APMX - Depth Of Cut Maximum	15.4mm
TPI - Threads Per Inch	28
TG - Taper Gradient	0
DC - Cutting Diameter	6mm
FHA - Flute Helix Angle	10deg
GAMF - Radial Rake Angle	7.5deg
ORDCODE	R217.93-060280BC15N 1630
ADINTMS - Adaptive Interface Machine Direction	M_CYLW_F6000_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	2
CHANGEDATE	2021-12-21 01:59:00.000
STDLET - Standard Letter	WE
STDNO - Standard Number	DIN6535
Hand	R
TCDCON - Connection Diameter Tolerance	h6
Grade	1630
COATING	PVD TiAlN
SUBSTRATE	HC
THFT - Thread Form Type	WH55
TPT - Thread Profile Type	F
TTP - Thread Type	EXT_INT
BSG - Basic Standard Group	COROMANT
ZEFP - Peripheral Effective Cutting Edge Count	3
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
CPDF - Cutting Pitch Differential	False
