R 278,30
inc. vat
In stock
SKU
5743998

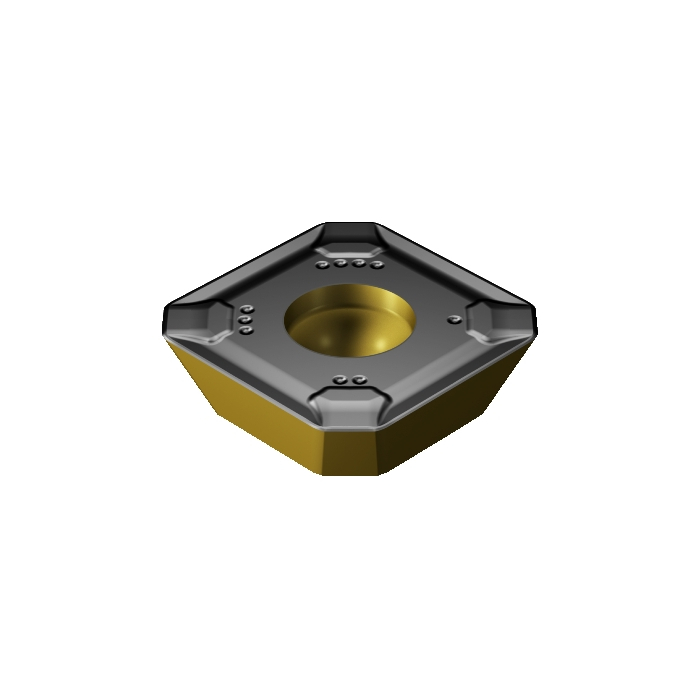

CoroMill® 245 insert for milling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 245 insert for milling
KAP - Kappa (z-axis Rot) | 0deg |
---|---|
WT - Weight Of Item | 6.9g |
AN - Clearance Angle Major | 20deg |
IC - Inscribed Circle Diameter | 13.4mm |
RE - Corner Radius | 1.5mm |
Insert Thickness | 3.96875mm |
D1 - Fixing Hole Diameter | 4.1mm |
LE - Cutting Edge Effective Length | 10mm |
L - Cutting Edge Length | 13.4mm |
KRINS - Major Cutting Edge Angle | 45deg |
BS - Wiper Edge Length | 2mm |
GAN - Insert Rake Angle | 6deg |
APMX - Depth Of Cut Maximum | 6.5mm |
ORDCODE | R245-12 T3 M-KM 3220 |
CHANGEDATE | 2022-09-23 16:43:00.000 |
Hand | R |
IFS - Insert Mounting Style Code | 3 |
SC - Insert Shape Code | S |
SSC - Insert Seat Size Code | 12 |
CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_MB12T3_1 |
Grade | 3220 |
COATING | CVD TiCN+Al2O3+TiN |
SUBSTRATE | HC |
CBMD - Chip Breaker Manufacturer's Designation | KM |
CEDC - Cutting Edge Count | 4 |
WEP - Wiper Edge Property | True |
