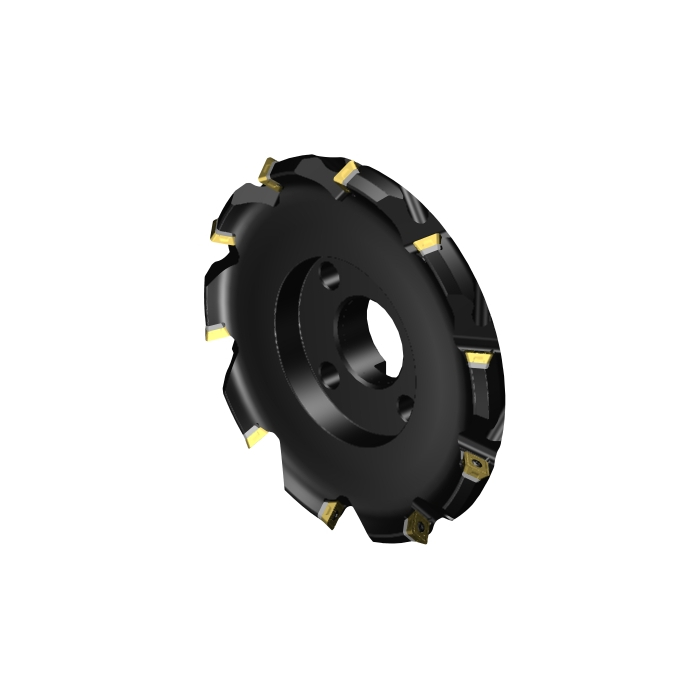

Sandvik Coromant R245-250Q60-18M CoroMill™ 245 face milling cutter

Name: Sandvik Coromant R245-250Q60-18M CoroMill™ 245 face milling cutter
SKU: 5744037
Price: 29648.15 ZAR
Availability: OutOfStock

R 29 648,15 inc. vat

Out of stock

SKU

5744037

CoroMill® 245 face milling cutter

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® 245 face milling cutter

More Information
DCON - Connection Diameter	60mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	63mm
TQ - Torque	5Nm
RPMX - Rotational Speed Maximum	34001/min
WT - Weight Of Item	11.925kg
OAL - Overall Length	63mm
OHX - Maximum Overhang	63mm
DBC - Diameter Bolt Circle	101.6mm
KAPR - Tool Cutting Edge Angle	45deg
RMPX - Maximum Ramping Angle	0deg
GAMO - Orthogonal Rake Angle	6.6deg
LAMS - Inclination Angle	18deg
AN - Clearance Angle Major	20deg
IC - Inscribed Circle Diameter	18mm
Insert Thickness	6.1mm
APMX - Depth Of Cut Maximum	10mm
DC - Cutting Diameter	250mm
DCF - Cutting Diameter Face Contact	250mm
GAMF - Radial Rake Angle	-8.41517966deg
GAMP - Axial Rake Angle	17.30536138deg
DCX - Maximum Cutting Diameter	268.8mm
AZ - Maximum Plunge Depth	0mm
ORDCODE	R245-250Q60-18M
ADINTMS - Adaptive Interface Machine Direction	M_FDA1C4_G6000_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	1
CHANGEDATE	2022-05-04 11:47:00.000
STDLET - Standard Letter	C
STDNO - Standard Number	ISO6462
MTP - Clamping Type Code	S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WCOR_MB18T6_1
Hand	R
MIID - Master Insert Identification	R245-18T6..
IFS - Insert Mounting Style Code	3
SC - Insert Shape Code	S
SSC - Insert Seat Size Code	18
CICT - Cutting Item Count	10
ZEFP - Peripheral Effective Cutting Edge Count	10
DPC - Damping Property	False
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
CPDF - Cutting Pitch Differential	True
