Sandvik Coromant R290.90-12T320M-PM 4230 CoroMill™ 290 insert for milling
R 296,70
inc. vat
In stock
SKU
5744144
CoroMill® 290 insert for milling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 290 insert for milling

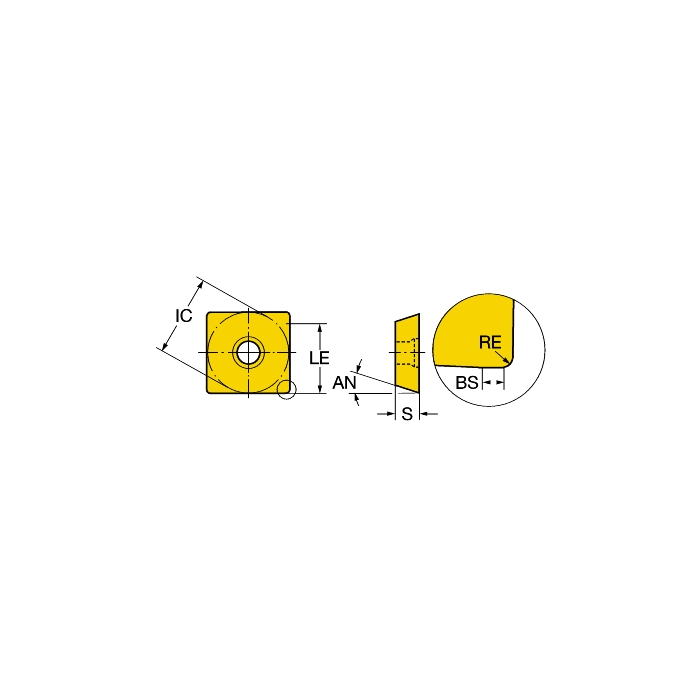

| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 7.3g |
| AN - Clearance Angle Major | 18deg |
| IC - Inscribed Circle Diameter | 13.29mm |
| RE - Corner Radius | 2mm |
| Insert Thickness | 3.96875mm |
| D1 - Fixing Hole Diameter | 4.1mm |
| LE - Cutting Edge Effective Length | 10.7mm |
| L - Cutting Edge Length | 13.29mm |
| KRINS - Major Cutting Edge Angle | 90deg |
| APMX - Depth Of Cut Maximum | 10.7mm |
| ORDCODE | R290.90-12T320M-PM 4230 |
| CHANGEDATE | 2022-09-23 16:43:00.000 |
| Hand | R |
| IFS - Insert Mounting Style Code | 3 |
| SC - Insert Shape Code | S |
| SSC - Insert Seat Size Code | 12 |
| CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_MC12T3_1 |
| Grade | 4230 |
| COATING | CVD TiCN+Al2O3+TiN |
| SUBSTRATE | HC |
| CBMD - Chip Breaker Manufacturer's Designation | PM |
| CEDC - Cutting Edge Count | 4 |
| WEP - Wiper Edge Property | False |
