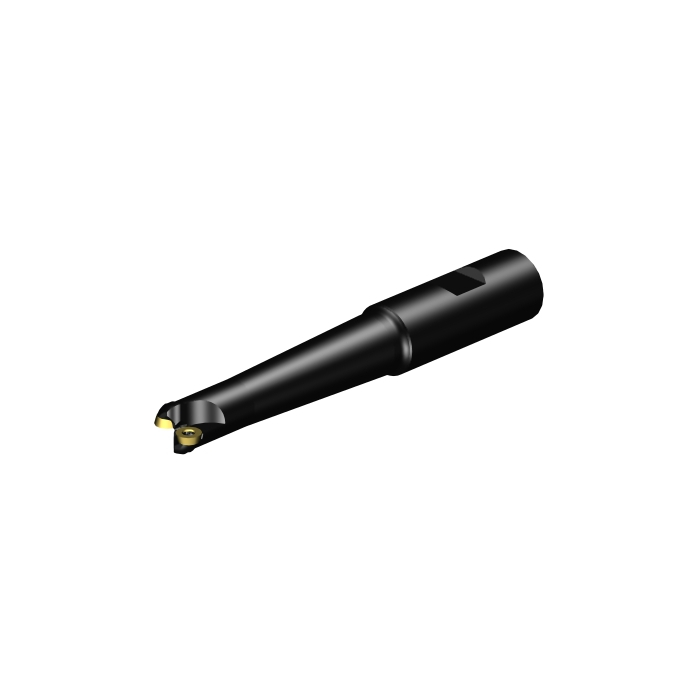

Sandvik Coromant R300-025A32L-12L CoroMill™ 300 face milling cutter
Next
Sandvik Coromant R300-025A20-10M CoroMill™ 300 face milling cutter
Previous
![Sandvik Coromant R300-025A32L-12L CoroMill™ 300 face milling cutter](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/637711023/sandvik-coromant-r300-025a32l-12l-coromilltm-300-face-milling-cutter.jpg)
![Sandvik Coromant R300-025A20-10M CoroMill™ 300 face milling cutter](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/637692e0c/sandvik-coromant-r300-025a20-10m-coromilltm-300-face-milling-cutter.jpg)
R 4 131,95
inc. vat
In stock
SKU
5744256
CoroMill® 300 face milling cutter
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 300 face milling cutter
DCON - Connection Diameter | 20mm |
---|---|
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 131mm |
BD - Body Diameter | 13.4mm |
LB - Body Length | 25mm |
TQ - Torque | 0.9Nm |
RPMX - Rotational Speed Maximum | 250001/min |
WT - Weight Of Item | 0.227kg |
OAL - Overall Length | 131mm |
OHX - Maximum Overhang | 81mm |
LSC - Clamping Length | 51mm |
RMPX - Maximum Ramping Angle | 20deg |
GAMO - Orthogonal Rake Angle | 0deg |
LAMS - Inclination Angle | 0deg |
AN - Clearance Angle Major | 15deg |
IC - Inscribed Circle Diameter | 7mm |
RE - Corner Radius | 3.5mm |
Insert Thickness | 2.38125mm |
H - Shank Height | 18.2mm |
LU - Usable Length | 43.6mm |
MHD - Mounting Hole Distance | 25mm |
APMX - Depth Of Cut Maximum | 3.5mm |
DC - Cutting Diameter | 8mm |
DCF - Cutting Diameter Face Contact | 8mm |
GAMF - Radial Rake Angle | 0deg |
GAMP - Axial Rake Angle | 0deg |
DCX - Maximum Cutting Diameter | 15mm |
AZ - Maximum Plunge Depth | 0.9mm |
ORDCODE | R300-015B20L-07L |
ADINTMS - Adaptive Interface Machine Direction | M_CYLW_G2000_1 |
CNSC - Coolant Entry Style Code | 0 |
CXSC - Coolant Exit Style Code | 0 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-08-18 15:47:00.000 |
STDLET - Standard Letter | HB |
STDNO - Standard Number | DIN6535 |
MTP - Clamping Type Code | S |
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_MD0724_1 |
Hand | R |
MIID - Master Insert Identification | R300-0724.. |
IFS - Insert Mounting Style Code | 3 |
SC - Insert Shape Code | R |
SSC - Insert Seat Size Code | 07 24 |
TCDCON - Connection Diameter Tolerance | h6 |
CICT - Cutting Item Count | 2 |
ZEFP - Peripheral Effective Cutting Edge Count | 2 |
DPC - Damping Property | False |
NROTF - Non Rotating Functionality | False |
RTOF - Rotating Functionality | True |
CPDF - Cutting Pitch Differential | False |
