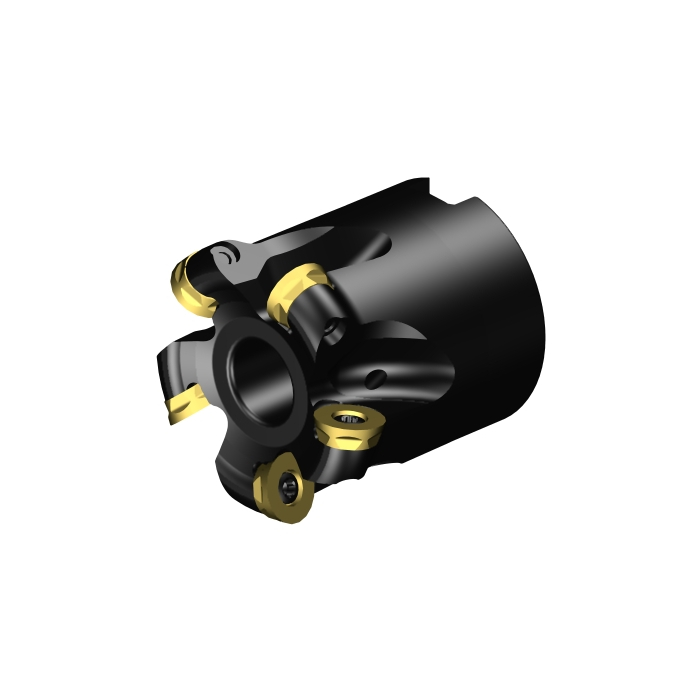

Sandvik Coromant R300-050Q22-12H CoroMill™ 300 face milling cutter

R 8 698,60 inc. vat
In stock
SKU
5744344
CoroMill® 300 face milling cutter
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 300 face milling cutter
More Information
CP - Coolant Pressure 1000000Pa
DCON - Connection Diameter 22mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 50mm
TQ - Torque 3Nm
RPMX - Rotational Speed Maximum 250001/min
WT - Weight Of Item 0.353kg
OAL - Overall Length 50mm
OHX - Maximum Overhang 50mm
RMPX - Maximum Ramping Angle 5.5deg
GAMO - Orthogonal Rake Angle 7deg
LAMS - Inclination Angle 0deg
AN - Clearance Angle Major 15deg
IC - Inscribed Circle Diameter 12mm
RE - Corner Radius 6mm
Insert Thickness 3.96875mm
APMX - Depth Of Cut Maximum 6mm
DC - Cutting Diameter 38mm
DCF - Cutting Diameter Face Contact 38mm
GAMF - Radial Rake Angle 0deg
GAMP - Axial Rake Angle 6.99999995deg
DCX - Maximum Cutting Diameter 50mm
AZ - Maximum Plunge Depth 3mm
ORDCODE R300-050Q22-12H
ADINTMS - Adaptive Interface Machine Direction M_FDA1A1_G2200_1
CNSC - Coolant Entry Style Code 1
CXSC - Coolant Exit Style Code 3
BMC - Body Material Code 1
CHANGEDATE 2022-06-15 14:46:00.000
STDLET - Standard Letter A
STDNO - Standard Number ISO6462
MTP - Clamping Type Code S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers WCOR_MD1240_1
Hand R
MIID - Master Insert Identification R300-1240..
IFS - Insert Mounting Style Code 3
SC - Insert Shape Code R
SSC - Insert Seat Size Code 12
CICT - Cutting Item Count 5
ZEFP - Peripheral Effective Cutting Edge Count 5
DPC - Damping Property False
NROTF - Non Rotating Functionality False
RTOF - Rotating Functionality True
CPDF - Cutting Pitch Differential False
