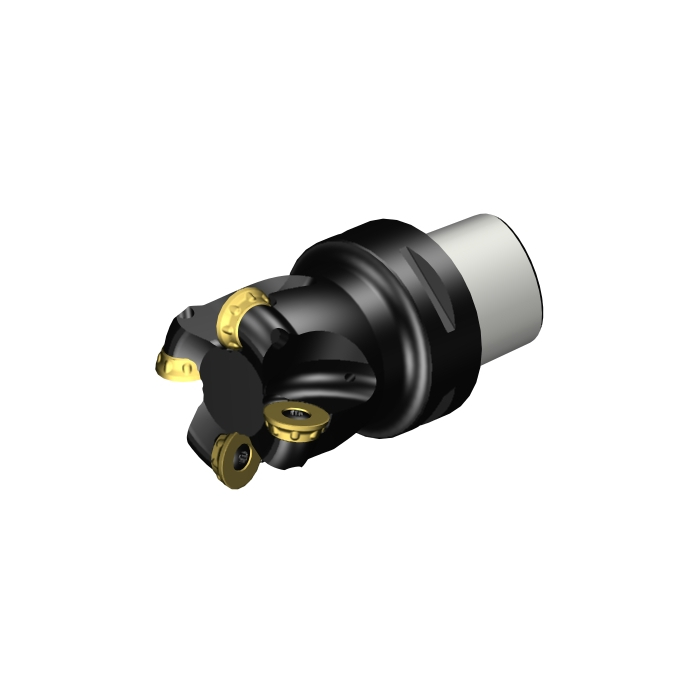

Sandvik Coromant R300-066C6-20M CoroMill™ 300 face milling cutter

Name: Sandvik Coromant R300-066C6-20M CoroMill™ 300 face milling cutter
SKU: 5744331
Price: 10504.10 ZAR
Availability: InStock

R 10 504,10 inc. vat

In stock

SKU

5744331

CoroMill® 300 face milling cutter

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® 300 face milling cutter

More Information
CP - Coolant Pressure	1000000Pa
DFC - Functional Diameter	44mm
DCON - Connection Diameter	63mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	80mm
TQ - Torque	7.5Nm
RPMX - Rotational Speed Maximum	184781/min
WT - Weight Of Item	1469g
OAL - Overall Length	118mm
OHX - Maximum Overhang	80mm
RMPX - Maximum Ramping Angle	9.4deg
GAMO - Orthogonal Rake Angle	7deg
LAMS - Inclination Angle	-2deg
AN - Clearance Angle Major	15deg
IC - Inscribed Circle Diameter	20mm
RE - Corner Radius	10mm
Insert Thickness	6.48mm
APMX - Depth Of Cut Maximum	10mm
DC - Cutting Diameter	46mm
DCF - Cutting Diameter Face Contact	46mm
GAMF - Radial Rake Angle	2.00000003deg
GAMP - Axial Rake Angle	6.99999995deg
DCX - Maximum Cutting Diameter	66mm
AZ - Maximum Plunge Depth	6mm
ORDCODE	R300-066C6-20M
ADINTMS - Adaptive Interface Machine Direction	M_CCS01_C0630_1
CNSC - Coolant Entry Style Code	3
CXSC - Coolant Exit Style Code	3
BMC - Body Material Code	1
CHANGEDATE	2022-09-26 13:44:00.000
STDNO - Standard Number	ISO26623-1
MTP - Clamping Type Code	S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WCOR_MD2060_1
Hand	R
MIID - Master Insert Identification	R300-2060..
IFS - Insert Mounting Style Code	3
SC - Insert Shape Code	R
SSC - Insert Seat Size Code	20
CICT - Cutting Item Count	4
ZEFP - Peripheral Effective Cutting Edge Count	4
DPC - Damping Property	False
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
CPDF - Cutting Pitch Differential	True
