Sandvik Coromant R300-080Q27-08H CoroMill™ 300 face milling cutter
Next

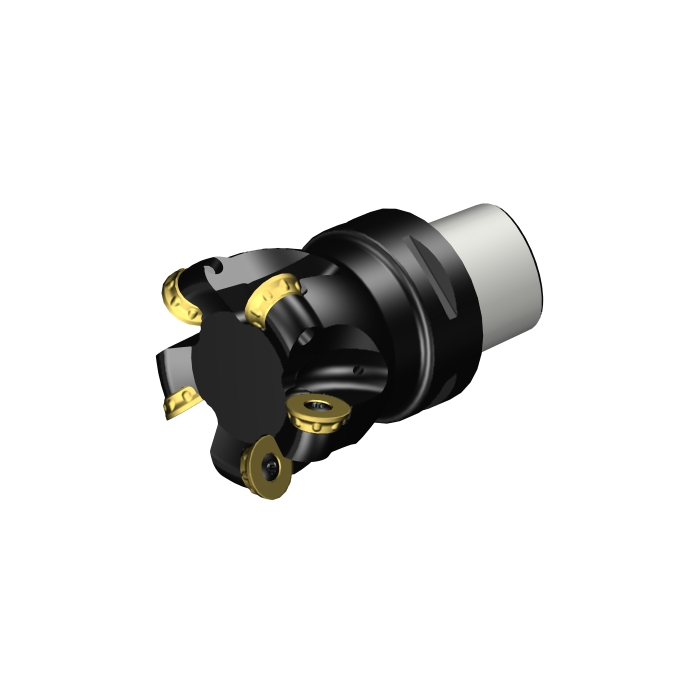

Sandvik Coromant R300-080C6-20H CoroMill™ 300 face milling cutter
Previous
![Sandvik Coromant R300-080Q27-08H CoroMill™ 300 face milling cutter](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/638498e20/sandvik-coromant-r300-080q27-08h-coromilltm-300-face-milling-cutter.jpg)
![Sandvik Coromant R300-080C6-20H CoroMill™ 300 face milling cutter](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/638476551/sandvik-coromant-r300-080c6-20h-coromilltm-300-face-milling-cutter.jpg)
R 12 505,10
inc. vat
In stock
SKU
5744432
CoroMill® 300 face milling cutter
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 300 face milling cutter
CP - Coolant Pressure | 1000000Pa |
---|---|
DFC - Functional Diameter | 44mm |
DCON - Connection Diameter | 63mm |
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 80mm |
TQ - Torque | 7.5Nm |
RPMX - Rotational Speed Maximum | 156221/min |
WT - Weight Of Item | 1.822kg |
OAL - Overall Length | 118mm |
OHX - Maximum Overhang | 80mm |
RMPX - Maximum Ramping Angle | 6.7deg |
GAMO - Orthogonal Rake Angle | 7deg |
LAMS - Inclination Angle | -2deg |
AN - Clearance Angle Major | 15deg |
IC - Inscribed Circle Diameter | 20mm |
RE - Corner Radius | 10mm |
Insert Thickness | 6.48mm |
APMX - Depth Of Cut Maximum | 10mm |
DC - Cutting Diameter | 60mm |
DCF - Cutting Diameter Face Contact | 60mm |
GAMF - Radial Rake Angle | 2.00000003deg |
GAMP - Axial Rake Angle | 6.99999995deg |
DCX - Maximum Cutting Diameter | 80mm |
AZ - Maximum Plunge Depth | 6mm |
ORDCODE | R300-080C6-20M |
ADINTMS - Adaptive Interface Machine Direction | M_CCS01_C0630_1 |
CNSC - Coolant Entry Style Code | 3 |
CXSC - Coolant Exit Style Code | 3 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-09-26 13:45:00.000 |
STDNO - Standard Number | ISO26623-1 |
MTP - Clamping Type Code | S |
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_MD2060_1 |
Hand | R |
MIID - Master Insert Identification | R300-2060.. |
IFS - Insert Mounting Style Code | 3 |
SC - Insert Shape Code | R |
SSC - Insert Seat Size Code | 20 |
CICT - Cutting Item Count | 5 |
ZEFP - Peripheral Effective Cutting Edge Count | 5 |
DPC - Damping Property | False |
NROTF - Non Rotating Functionality | False |
RTOF - Rotating Functionality | True |
CPDF - Cutting Pitch Differential | True |
