Sandvik Coromant R300-1340E-MM 2040 CoroMill™ 300 insert for milling Previous Sandvik Coromant R300-1340E-MM 2040 CoroMill™ 300 insert for milling

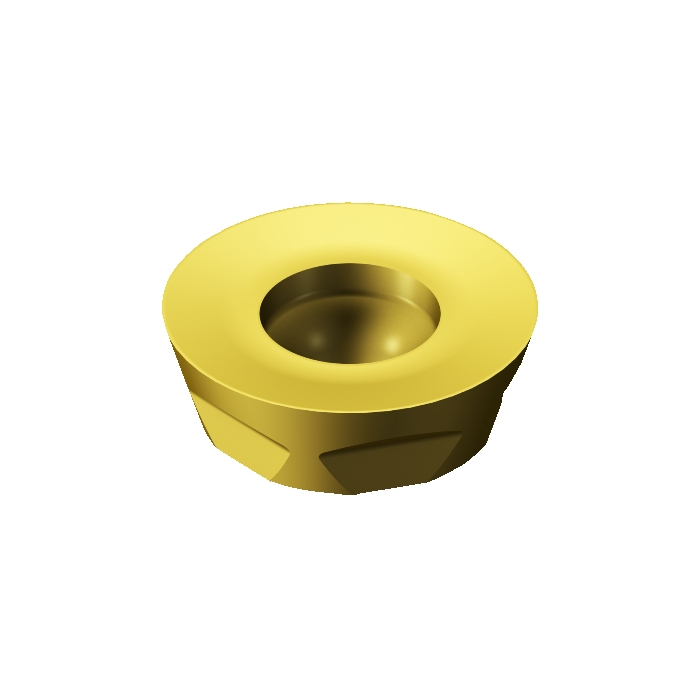

Sandvik Coromant R300-0828M-MM 2040 CoroMill™ 300 insert for milling

R 169,05 inc. vat
In stock
SKU
5744488
CoroMill® 300 insert for milling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 300 insert for milling
More Information
KAP - Kappa (z-axis Rot) 0deg
WT - Weight Of Item 1.3g
AN - Clearance Angle Major 15deg
IC - Inscribed Circle Diameter 8mm
RE - Corner Radius 4mm
Insert Thickness 2.78mm
D1 - Fixing Hole Diameter 2.8mm
APMX - Depth Of Cut Maximum 4mm
ORDCODE R300-0828M-MM 2040
CHANGEDATE 2022-09-23 16:45:00.000
Hand N
IFS - Insert Mounting Style Code 3
SC - Insert Shape Code R
SSC - Insert Seat Size Code 08
CUTINT_SIZESHAPE - Insert Size And Shape MCOR_MD0828_1
Grade 2040
COATING CVD TiCrN+Al2O3+TiN
SUBSTRATE HC
CBMD - Chip Breaker Manufacturer's Designation MM
CEDC - Cutting Edge Count 4
WEP - Wiper Edge Property False
