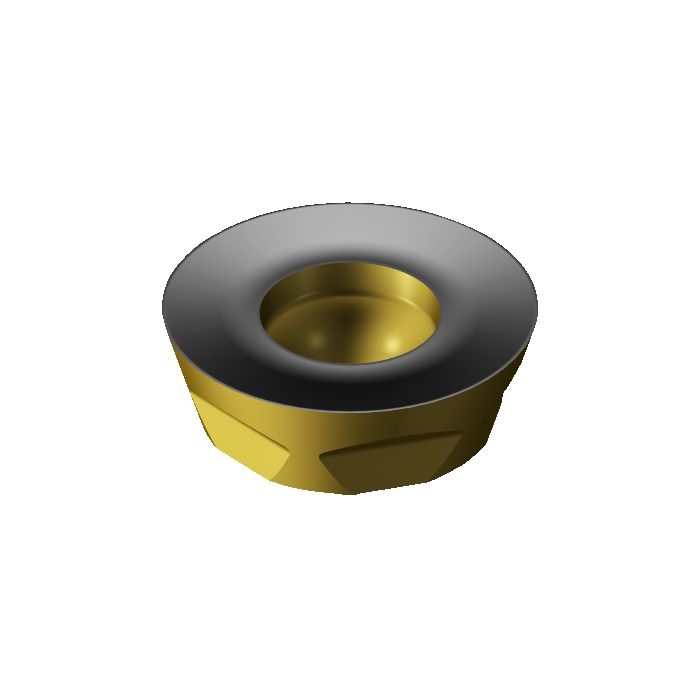

Sandvik Coromant R300-0828M-PM 4340 CoroMill™ 300 insert for milling
Next
Sandvik Coromant R300-0828M-PH 4330 CoroMill™ 300 insert for milling
Previous
![Sandvik Coromant R300-0828M-PM 4340 CoroMill™ 300 insert for milling](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/696220c7b/sandvik-coromant-r300-0828m-pm-4340-coromilltm-300-insert-for-milling.jpg)
![Sandvik Coromant R300-0828M-PH 4330 CoroMill™ 300 insert for milling](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/696209297/sandvik-coromant-r300-0828m-ph-4330-coromilltm-300-insert-for-milling.jpg)
R 169,05
inc. vat
In stock
SKU
7564572
CoroMill® 300 insert for milling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 300 insert for milling
KAP - Kappa (z-axis Rot) | 0deg |
---|---|
WT - Weight Of Item | 0.002kg |
AN - Clearance Angle Major | 15deg |
IC - Inscribed Circle Diameter | 8mm |
RE - Corner Radius | 4mm |
Insert Thickness | 2.78mm |
D1 - Fixing Hole Diameter | 2.8mm |
APMX - Depth Of Cut Maximum | 4mm |
ORDCODE | R300-0828M-PH 4340 |
CHANGEDATE | 2022-09-23 21:21:00.000 |
Hand | N |
IFS - Insert Mounting Style Code | 3 |
SC - Insert Shape Code | R |
SSC - Insert Seat Size Code | 08 |
CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_MD0828_1 |
Grade | 4340 |
COATING | CVD TiCN+Al2O3+TiN |
SUBSTRATE | HC |
CBMD - Chip Breaker Manufacturer's Designation | PH |
CEDC - Cutting Edge Count | 4 |
WEP - Wiper Edge Property | False |
