Sandvik Coromant R300-0828M-MM 1040 CoroMill™ 300 insert for milling Previous Sandvik Coromant R300-0828M-MM 1040 CoroMill™ 300 insert for milling

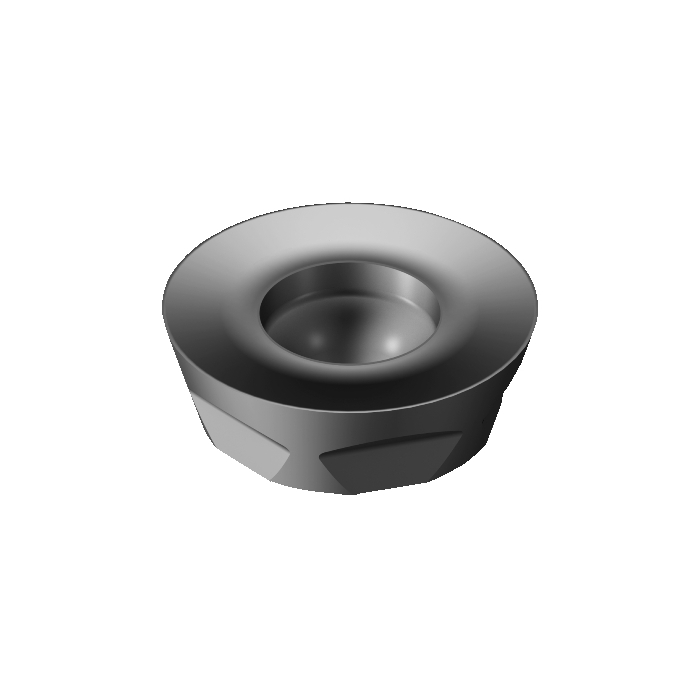

Sandvik Coromant R300-1032E-MM 1040 CoroMill™ 300 insert for milling

R 217,35 inc. vat
In stock
SKU
5888516
CoroMill® 300 insert for milling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 300 insert for milling
More Information
KAP - Kappa (z-axis Rot) 0deg
WT - Weight Of Item 2g
AN - Clearance Angle Major 15deg
IC - Inscribed Circle Diameter 10mm
RE - Corner Radius 5mm
Insert Thickness 3.175mm
D1 - Fixing Hole Diameter 4.4mm
APMX - Depth Of Cut Maximum 2.5mm
ORDCODE R300-1032E-MM 1040
CHANGEDATE 2022-09-23 17:56:00.000
Hand N
IFS - Insert Mounting Style Code 3
SC - Insert Shape Code R
SSC - Insert Seat Size Code 10
CUTINT_SIZESHAPE - Insert Size And Shape MCOR_MD1032_1
Grade 1040
COATING PVD TiAlN
SUBSTRATE HC
CBMD - Chip Breaker Manufacturer's Designation MM
CEDC - Cutting Edge Count 6
WEP - Wiper Edge Property False
