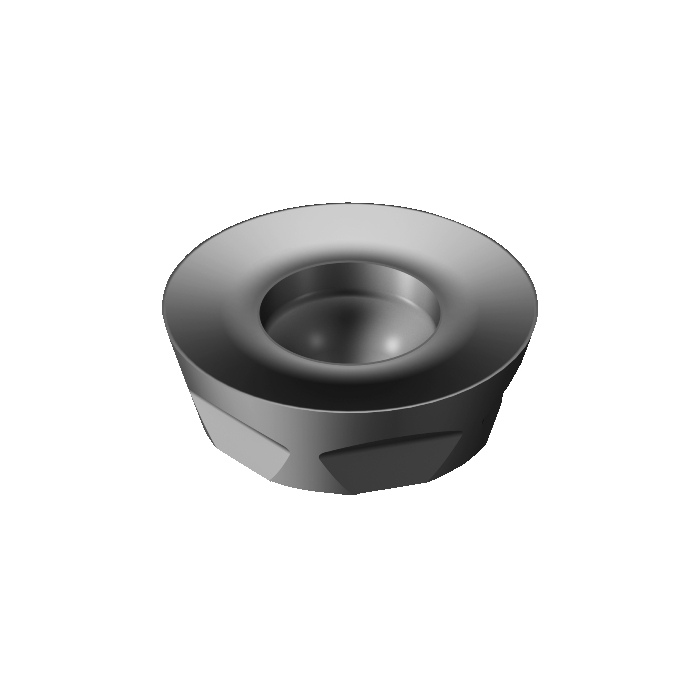

Sandvik Coromant R300-1240E-PL S30T CoroMill™ 300 insert for milling

R 272,55 inc. vat
In stock
SKU
5853437
CoroMill® 300 insert for milling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 300 insert for milling
More Information
KAP - Kappa (z-axis Rot) 0deg
WT - Weight Of Item 4.3g
AN - Clearance Angle Major 15deg
IC - Inscribed Circle Diameter 12mm
RE - Corner Radius 6mm
Insert Thickness 3.96875mm
D1 - Fixing Hole Diameter 4.1mm
APMX - Depth Of Cut Maximum 3mm
ORDCODE R300-1240E-PL S30T
CHANGEDATE 2021-12-17 20:21:00.000
Hand N
IFS - Insert Mounting Style Code 3
SC - Insert Shape Code R
SSC - Insert Seat Size Code 12
CUTINT_SIZESHAPE - Insert Size And Shape MCOR_MD1240_1
Grade S30T
COATING PVD TiAlN
SUBSTRATE HC
CBMD - Chip Breaker Manufacturer's Designation PL
CEDC - Cutting Edge Count 6
WEP - Wiper Edge Property False
