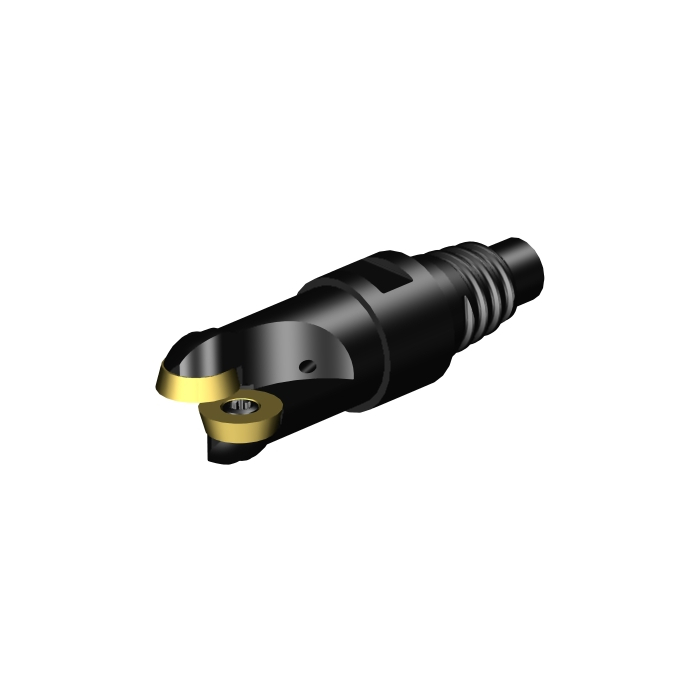

Sandvik Coromant R300-12EH12-07L CoroMill™ 300 face milling cutter

Name: Sandvik Coromant R300-12EH12-07L CoroMill™ 300 face milling cutter
SKU: 6550012
Price: 4114.70 ZAR
Availability: OutOfStock

R 4 114,70 inc. vat

Out of stock

SKU

6550012

CoroMill® 300 face milling cutter

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® 300 face milling cutter

More Information
CP - Coolant Pressure	1000000Pa
DCON - Connection Diameter	11.7mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	25mm
BD - Body Diameter	10.34mm
LB - Body Length	17.5mm
BHTA - Body Half Taper Angle	0deg
TQ - Torque	0.9Nm
RPMX - Rotational Speed Maximum	200001/min
WT - Weight Of Item	0.017kg
OAL - Overall Length	38.8mm
OHX - Maximum Overhang	25mm
RMPX - Maximum Ramping Angle	20deg
GAMO - Orthogonal Rake Angle	0deg
LAMS - Inclination Angle	0deg
AN - Clearance Angle Major	15deg
IC - Inscribed Circle Diameter	7mm
RE - Corner Radius	3.5mm
Insert Thickness	1.99mm
APMX - Depth Of Cut Maximum	3.5mm
DC - Cutting Diameter	5mm
DCF - Cutting Diameter Face Contact	5mm
GAMF - Radial Rake Angle	0deg
GAMP - Axial Rake Angle	0deg
DCX - Maximum Cutting Diameter	12mm
AZ - Maximum Plunge Depth	1.02mm
ORDCODE	R300-12EH12-07L
ADINTMS - Adaptive Interface Machine Direction	M_SAT01_A0120_1
CNSC - Coolant Entry Style Code	1
CXSC - Coolant Exit Style Code	3
BMC - Body Material Code	1
CHANGEDATE	2022-06-15 15:12:00.000
MTP - Clamping Type Code	S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WCOR_MD0720_1
Hand	R
MIID - Master Insert Identification	R300-0720..
IFS - Insert Mounting Style Code	3
SC - Insert Shape Code	R
SSC - Insert Seat Size Code	07 20
CICT - Cutting Item Count	2
ZEFP - Peripheral Effective Cutting Edge Count	2
DPC - Damping Property	False
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
CPDF - Cutting Pitch Differential	False
