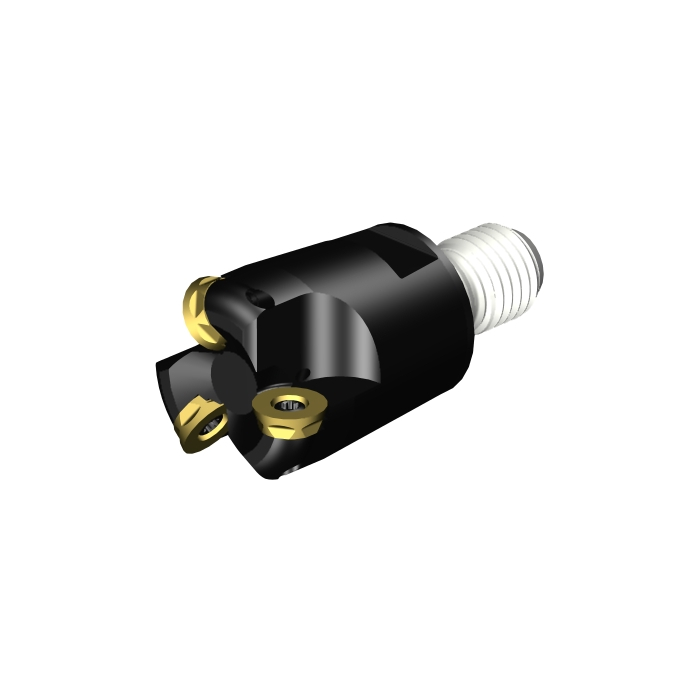

Sandvik Coromant R300-35T16-12M CoroMill™ 300 face milling cutter

Name: Sandvik Coromant R300-35T16-12M CoroMill™ 300 face milling cutter
SKU: 5744584
Price: 6306.60 ZAR
Availability: InStock

R 6 306,60 inc. vat

In stock

SKU

5744584

CoroMill® 300 face milling cutter

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® 300 face milling cutter

More Information
CP - Coolant Pressure	1000000Pa
DCON - Connection Diameter	28.8mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	45mm
BD - Body Diameter	33.1mm
TQ - Torque	3Nm
RPMX - Rotational Speed Maximum	91001/min
WT - Weight Of Item	231g
OAL - Overall Length	69mm
OHX - Maximum Overhang	45mm
RMPX - Maximum Ramping Angle	16deg
GAMO - Orthogonal Rake Angle	0deg
LAMS - Inclination Angle	0deg
AN - Clearance Angle Major	15deg
IC - Inscribed Circle Diameter	12mm
RE - Corner Radius	6mm
Insert Thickness	3.96875mm
APMX - Depth Of Cut Maximum	6mm
DC - Cutting Diameter	23mm
DCF - Cutting Diameter Face Contact	23mm
GAMF - Radial Rake Angle	0deg
GAMP - Axial Rake Angle	0deg
DCX - Maximum Cutting Diameter	35mm
AZ - Maximum Plunge Depth	5mm
ORDCODE	R300-35T16-12M
ADINTMS - Adaptive Interface Machine Direction	M_SAC03_A0160_1
CNSC - Coolant Entry Style Code	1
CXSC - Coolant Exit Style Code	3
BMC - Body Material Code	1
CHANGEDATE	2022-06-15 14:46:00.000
MTP - Clamping Type Code	S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WCOR_MD1240_1
Hand	R
MIID - Master Insert Identification	R300-1240..
IFS - Insert Mounting Style Code	3
SC - Insert Shape Code	R
SSC - Insert Seat Size Code	12
TDZ - Thread Diameter Size	M 16
CICT - Cutting Item Count	3
ZEFP - Peripheral Effective Cutting Edge Count	3
DPC - Damping Property	False
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
CPDF - Cutting Pitch Differential	False
