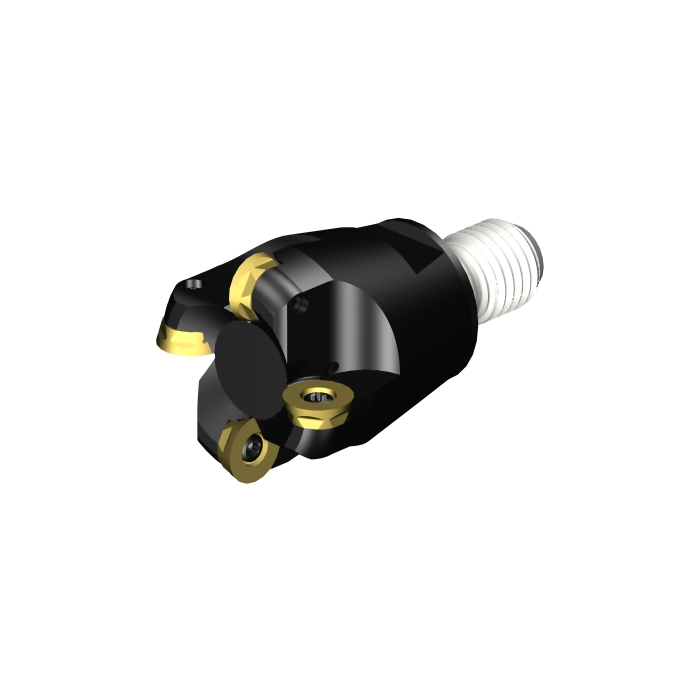

Sandvik Coromant R300-25T12-08M CoroMill™ 300 face milling cutter
Next
Sandvik Coromant R300-24T12-12L CoroMill™ 300 face milling cutter
Previous
R 7 611,85
inc. vat
In stock
SKU
5744671
CoroMill® 300 face milling cutter
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 300 face milling cutter
CP - Coolant Pressure | 1000000Pa |
---|---|
DCON - Connection Diameter | 28.8mm |
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 45mm |
BD - Body Diameter | 40.1mm |
TQ - Torque | 3Nm |
RPMX - Rotational Speed Maximum | 91001/min |
WT - Weight Of Item | 0.282kg |
OAL - Overall Length | 69mm |
OHX - Maximum Overhang | 45mm |
RMPX - Maximum Ramping Angle | 12.1deg |
GAMO - Orthogonal Rake Angle | 0deg |
LAMS - Inclination Angle | 0deg |
AN - Clearance Angle Major | 15deg |
IC - Inscribed Circle Diameter | 12mm |
RE - Corner Radius | 6mm |
Insert Thickness | 3.96875mm |
APMX - Depth Of Cut Maximum | 6mm |
DC - Cutting Diameter | 30mm |
DCF - Cutting Diameter Face Contact | 30mm |
GAMF - Radial Rake Angle | 0deg |
GAMP - Axial Rake Angle | 0deg |
DCX - Maximum Cutting Diameter | 42mm |
AZ - Maximum Plunge Depth | 5mm |
ORDCODE | R300-42T16-12M |
ADINTMS - Adaptive Interface Machine Direction | M_SAC03_A0160_1 |
CNSC - Coolant Entry Style Code | 1 |
CXSC - Coolant Exit Style Code | 3 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-06-15 14:46:00.000 |
MTP - Clamping Type Code | S |
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_MD1240_1 |
Hand | R |
MIID - Master Insert Identification | R300-1240.. |
IFS - Insert Mounting Style Code | 3 |
SC - Insert Shape Code | R |
SSC - Insert Seat Size Code | 12 |
TDZ - Thread Diameter Size | M 16 |
CICT - Cutting Item Count | 4 |
ZEFP - Peripheral Effective Cutting Edge Count | 4 |
DPC - Damping Property | False |
NROTF - Non Rotating Functionality | False |
RTOF - Rotating Functionality | True |
CPDF - Cutting Pitch Differential | False |
