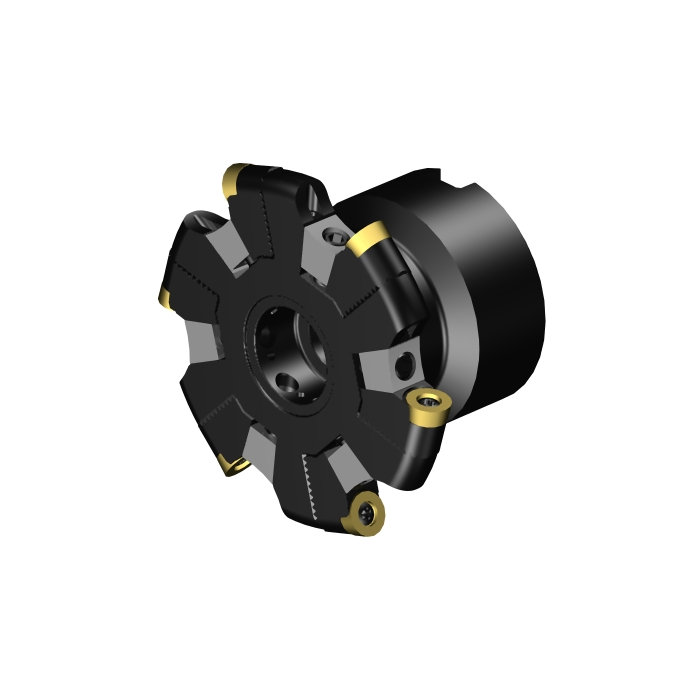

Sandvik Coromant R331.32C-082R25EMQ CoroMill™ 331 adjustable full side & face disc milling cutter
R 21 087,55
inc. vat
Out of stock
SKU
7370520
CoroMill® 331 adjustable full side and face disc milling cutter
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 331 adjustable full side and face disc milling cutter
| CP - Coolant Pressure | 8000000Pa |
|---|---|
| DCON - Connection Diameter | 25.4mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 50.8mm |
| TQ - Torque | 3Nm |
| RPMX - Rotational Speed Maximum | 181001/min |
| WT - Weight Of Item | 0.9kg |
| OAL - Overall Length | 50.8mm |
| OHX - Maximum Overhang | 50.8mm |
| AN - Clearance Angle Major | 7deg |
| IC - Inscribed Circle Diameter | 9.525mm |
| RE - Corner Radius | 4.7625mm |
| Insert Thickness | 3.96875mm |
| LU - Usable Length | 26mm |
| CW - Cutting Width | 9.525mm |
| CDX - Cutting Depth Maximum | 21.0058mm |
| APMX - Depth Of Cut Maximum | 9.525mm |
| DC - Cutting Diameter | 82mm |
| DCF - Cutting Diameter Face Contact | 72.475mm |
| DCX - Maximum Cutting Diameter | 82mm |
| DHUB - Hub Diameter | 51mm |
| PSW - Premachined Slot Width | 0mm |
| ORDCODE | R331.32C-082R25EMQ |
| ADINTMS - Adaptive Interface Machine Direction | M_FDA1A1_S1000_1 |
| CNSC - Coolant Entry Style Code | 1 |
| CXSC - Coolant Exit Style Code | 2 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-09-26 14:18:00.000 |
| STDLET - Standard Letter | A |
| STDNO - Standard Number | ISO6462 |
| MTP - Clamping Type Code | S |
| CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WISO_RC09T3_1 |
| Hand | R |
| MIID - Master Insert Identification | RCKT 09 T3 00 |
| IFS - Insert Mounting Style Code | 3 |
| SC - Insert Shape Code | R |
| SSC - Insert Seat Size Code | 09 |
| CICT - Cutting Item Count | 6 |
| ZEFP - Peripheral Effective Cutting Edge Count | 6 |
| DPC - Damping Property | False |
| NROTF - Non Rotating Functionality | False |
| RTOF - Rotating Functionality | True |
| CPDF - Cutting Pitch Differential | False |
