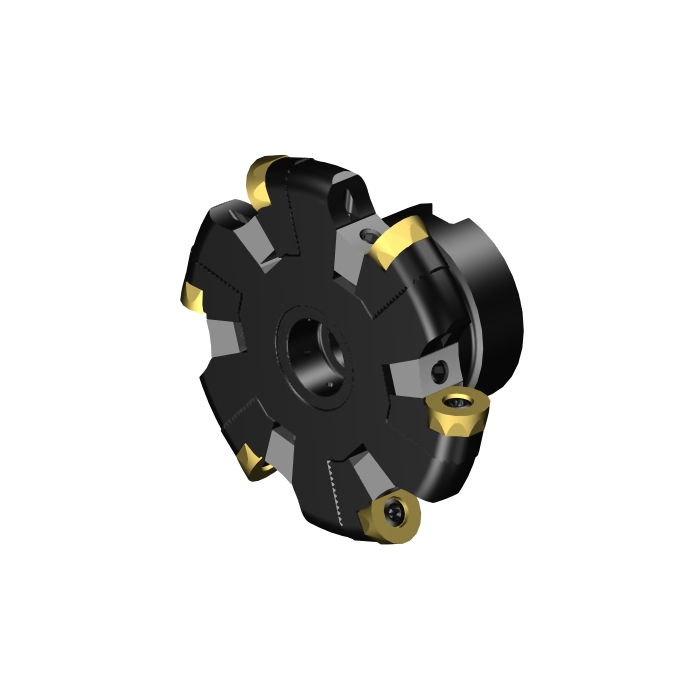

Sandvik Coromant R331.32C-102Q27KMQ CoroMill™ 331 adjustable full side & face disc milling cutter

Name: Sandvik Coromant R331.32C-102Q27KMQ CoroMill™ 331 adjustable full side & face disc milling cutter
SKU: 7370516
Price: 24353.55 ZAR
Availability: InStock

Be the first to review this product

R 24 353,55 inc. vat

In stock

SKU

7370516

CoroMill® 331 adjustable full side and face disc milling cutter

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® 331 adjustable full side and face disc milling cutter

More Information

More Information
CP - Coolant Pressure	8000000Pa
DCON - Connection Diameter	27mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	50mm
TQ - Torque	5Nm
RPMX - Rotational Speed Maximum	140001/min
WT - Weight Of Item	0.917kg
OAL - Overall Length	50mm
OHX - Maximum Overhang	50mm
AN - Clearance Angle Major	7deg
IC - Inscribed Circle Diameter	16mm
RE - Corner Radius	8mm
Insert Thickness	6.35mm
LU - Usable Length	26mm
CW - Cutting Width	16mm
CDX - Cutting Depth Maximum	26.5mm
APMX - Depth Of Cut Maximum	16mm
DC - Cutting Diameter	102mm
DCF - Cutting Diameter Face Contact	86mm
DCX - Maximum Cutting Diameter	102mm
DHUB - Hub Diameter	51mm
PSW - Premachined Slot Width	0mm
ORDCODE	R331.32C-102Q27KMQ
ADINTMS - Adaptive Interface Machine Direction	M_FDA1A1_G2700_1
CNSC - Coolant Entry Style Code	1
CXSC - Coolant Exit Style Code	2
BMC - Body Material Code	1
CHANGEDATE	2022-09-20 05:45:00.000
STDLET - Standard Letter	A
STDNO - Standard Number	ISO6462
MTP - Clamping Type Code	S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WISO_RC1606M_1
Hand	R
MIID - Master Insert Identification	RCKT 16 06 M0
IFS - Insert Mounting Style Code	3
SC - Insert Shape Code	R
SSC - Insert Seat Size Code	16
CICT - Cutting Item Count	6
ZEFP - Peripheral Effective Cutting Edge Count	6
DPC - Damping Property	False
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
CPDF - Cutting Pitch Differential	False
