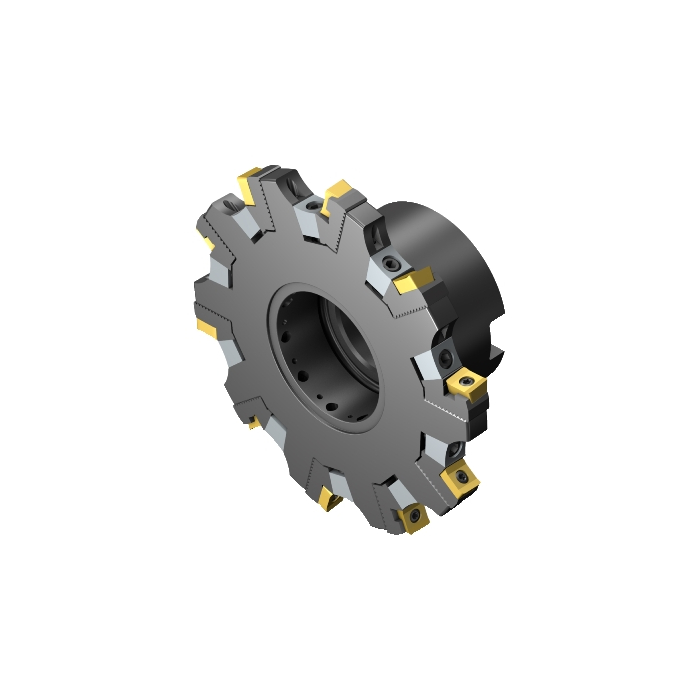

Sandvik Coromant R331.32C-125Q32KM CoroMill™ 331 adjustable full side & face disc milling cutter

R 26 646,65 inc. vat
In stock
SKU
7295416
CoroMill® 331 adjustable full side and face disc milling cutter
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 331 adjustable full side and face disc milling cutter
More Information
CP - Coolant Pressure 8000000Pa
DCON - Connection Diameter 32mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 50mm
TQ - Torque 3Nm
RPMX - Rotational Speed Maximum 124001/min
WT - Weight Of Item 1.332kg
OAL - Overall Length 50mm
OHX - Maximum Overhang 50mm
KAPR - Tool Cutting Edge Angle 90deg
AN - Clearance Angle Major 0deg
Insert Thickness 4.95mm
LU - Usable Length 26mm
CW - Cutting Width 15mm
CDX - Cutting Depth Maximum 29.5mm
APMX - Depth Of Cut Maximum 15mm
W1 - Insert Width 11.5mm
DC - Cutting Diameter 125mm
DCF - Cutting Diameter Face Contact 123.4mm
DCX - Maximum Cutting Diameter 125mm
DHUB - Hub Diameter 61mm
PSW - Premachined Slot Width 0mm
CWX - Maximum Cutting Width 17.5mm
ORDCODE R331.32C-125Q32KM
ADINTMS - Adaptive Interface Machine Direction M_FDA1B1_G3200_1
CNSC - Coolant Entry Style Code 1
CXSC - Coolant Exit Style Code 2
BMC - Body Material Code 1
CHANGEDATE 2022-09-26 14:16:00.000
STDLET - Standard Letter B
STDNO - Standard Number ISO6462
MTP - Clamping Type Code S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers WCOR_MW11_1
Hand R
MIID - Master Insert Identification N331.1A-11
IFS - Insert Mounting Style Code 3
SC - Insert Shape Code L
SSC - Insert Seat Size Code 11
CICT - Cutting Item Count 4
ZEFP - Peripheral Effective Cutting Edge Count 4
DPC - Damping Property False
NROTF - Non Rotating Functionality False
RTOF - Rotating Functionality True
CPDF - Cutting Pitch Differential False
