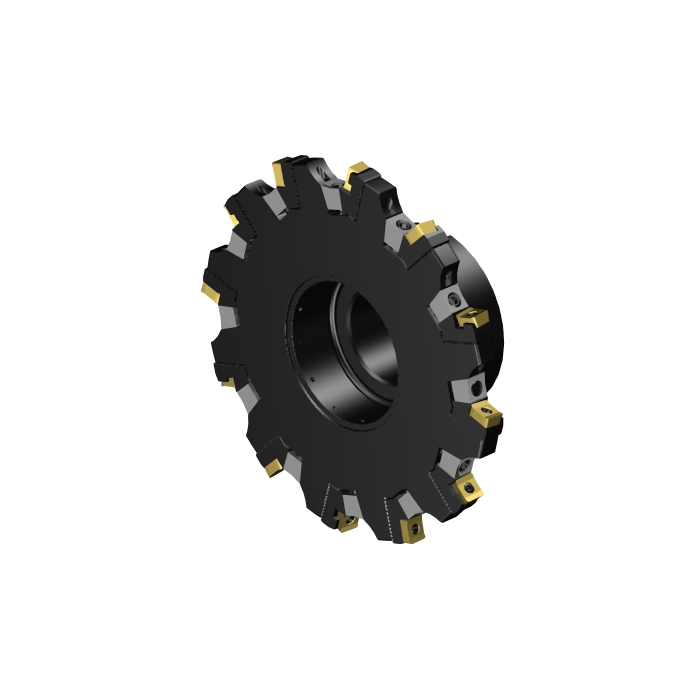

Sandvik Coromant R331.32C-152R38EM CoroMill™ 331 adjustable full side & face disc milling cutter

Name: Sandvik Coromant R331.32C-152R38EM CoroMill™ 331 adjustable full side & face disc milling cutter
SKU: 7295472
Price: 36971.35 ZAR
Availability: InStock

Be the first to review this product

R 36 971,35 inc. vat

In stock

SKU

7295472

CoroMill® 331 adjustable full side and face disc milling cutter

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® 331 adjustable full side and face disc milling cutter

More Information

More Information
CP - Coolant Pressure	8000000Pa
DCON - Connection Diameter	38.1mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	50.8mm
TQ - Torque	1.2Nm
RPMX - Rotational Speed Maximum	124001/min
WT - Weight Of Item	1.645kg
OAL - Overall Length	50.8mm
OHX - Maximum Overhang	50.8mm
KAPR - Tool Cutting Edge Angle	90deg
AN - Clearance Angle Major	0deg
Insert Thickness	4.45mm
LU - Usable Length	26mm
CW - Cutting Width	10mm
CDX - Cutting Depth Maximum	37.211mm
APMX - Depth Of Cut Maximum	10mm
W1 - Insert Width	9.5mm
DC - Cutting Diameter	152.4mm
DCF - Cutting Diameter Face Contact	150.8mm
DCX - Maximum Cutting Diameter	152.4mm
DHUB - Hub Diameter	73mm
PSW - Premachined Slot Width	0mm
CWX - Maximum Cutting Width	12mm
ORDCODE	R331.32C-152R38EM
ADINTMS - Adaptive Interface Machine Direction	M_FDA1B1_S1500_1
CNSC - Coolant Entry Style Code	1
CXSC - Coolant Exit Style Code	2
BMC - Body Material Code	1
CHANGEDATE	2022-09-26 14:17:00.000
STDLET - Standard Letter	B
STDNO - Standard Number	ISO6462
MTP - Clamping Type Code	S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WCOR_MW08_1
Hand	R
MIID - Master Insert Identification	N331.1A-08
IFS - Insert Mounting Style Code	3
SC - Insert Shape Code	L
SSC - Insert Seat Size Code	08
CICT - Cutting Item Count	6
ZEFP - Peripheral Effective Cutting Edge Count	6
DPC - Damping Property	False
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
CPDF - Cutting Pitch Differential	False
