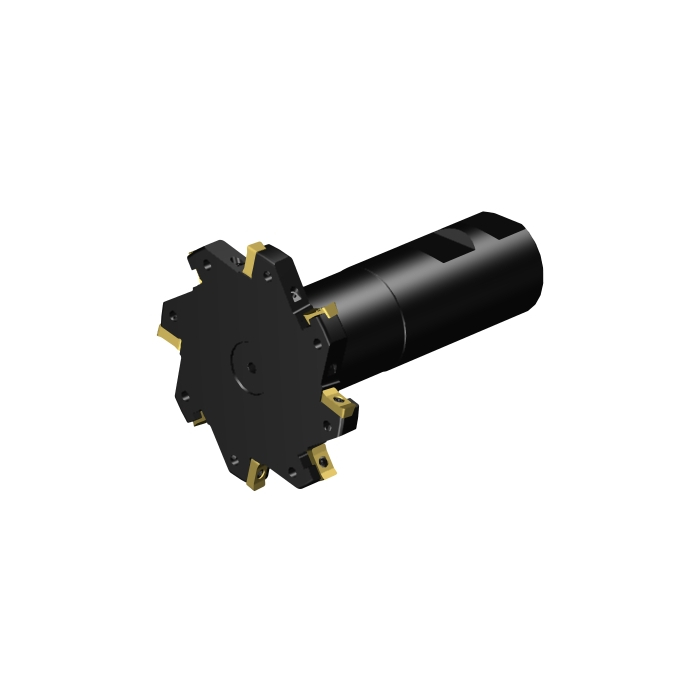

Sandvik Coromant R331.35C-076M32DMA05 CoroMill™ 331 full side & face disc milling cutter

R 16 037,90 inc. vat
In stock
SKU
7295452
CoroMill® 331 full side and face disc milling cutter
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 331 full side and face disc milling cutter
More Information
CP - Coolant Pressure 8000000Pa
DCON - Connection Diameter 31.75mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 105.156mm
TQ - Torque 1.2Nm
RPMX - Rotational Speed Maximum 195001/min
WT - Weight Of Item 0.744kg
OAL - Overall Length 105.156mm
OHX - Maximum Overhang 47.216mm
KAPR - Tool Cutting Edge Angle 90deg
AN - Clearance Angle Major 0deg
Insert Thickness 3.5mm
H - Shank Height 29.36mm
LU - Usable Length 38.1mm
MHD - Mounting Hole Distance 28.971875mm
CW - Cutting Width 7.9248mm
CDX - Cutting Depth Maximum 21.59mm
APMX - Depth Of Cut Maximum 7.9248mm
W1 - Insert Width 9.5mm
DC - Cutting Diameter 76.2mm
DCF - Cutting Diameter Face Contact 74.6mm
DCX - Maximum Cutting Diameter 76.2mm
PSW - Premachined Slot Width 0mm
ORDCODE R331.35C-076M32DMA05
ADINTMS - Adaptive Interface Machine Direction M_CYLW_S1250_1
CNSC - Coolant Entry Style Code 1
CXSC - Coolant Exit Style Code 2
BMC - Body Material Code 1
CHANGEDATE 2022-08-19 13:11:00.000
STDLET - Standard Letter HB
STDNO - Standard Number DIN6535
MTP - Clamping Type Code S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers WCOR_MW04_4
Hand R
MIID - Master Insert Identification N331.1A-04
IFS - Insert Mounting Style Code 3
SC - Insert Shape Code L
SSC - Insert Seat Size Code 04
TCDCON - Connection Diameter Tolerance h6
CICT - Cutting Item Count 4
ZEFP - Peripheral Effective Cutting Edge Count 4
DPC - Damping Property False
NROTF - Non Rotating Functionality False
RTOF - Rotating Functionality True
CPDF - Cutting Pitch Differential True
