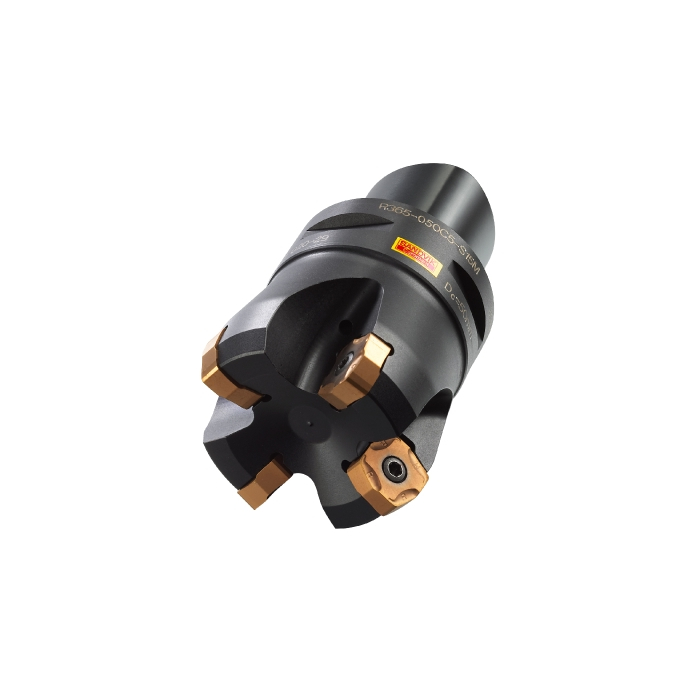

Sandvik Coromant R365-063C6-S15M CoroMill™ 365 face milling cutter

Name: Sandvik Coromant R365-063C6-S15M CoroMill™ 365 face milling cutter
SKU: 5745392
Price: 11007.80 ZAR
Availability: InStock

R 11 007,80 inc. vat

In stock

SKU

5745392

CoroMill® 365 face milling cutter

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® 365 face milling cutter

More Information
CP - Coolant Pressure	1000000Pa
DFC - Functional Diameter	44mm
DCON - Connection Diameter	63mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	60mm
TQ - Torque	3Nm
RPMX - Rotational Speed Maximum	136001/min
WT - Weight Of Item	1.88kg
OAL - Overall Length	98mm
OHX - Maximum Overhang	60mm
KAPR - Tool Cutting Edge Angle	65deg
RMPX - Maximum Ramping Angle	0deg
GAMO - Orthogonal Rake Angle	-11deg
LAMS - Inclination Angle	-7deg
AN - Clearance Angle Major	0deg
IC - Inscribed Circle Diameter	15mm
Insert Thickness	5.66mm
APMX - Depth Of Cut Maximum	6mm
DC - Cutting Diameter	60mm
DCF - Cutting Diameter Face Contact	60mm
GAMF - Radial Rake Angle	-7.08424731deg
GAMP - Axial Rake Angle	-10.94748412deg
DCX - Maximum Cutting Diameter	69.7mm
AZ - Maximum Plunge Depth	0mm
ORDCODE	R365-063C6-S15M
ADINTMS - Adaptive Interface Machine Direction	M_CCS01_C0630_1
CNSC - Coolant Entry Style Code	3
CXSC - Coolant Exit Style Code	1
BMC - Body Material Code	1
CHANGEDATE	2022-03-24 02:07:00.000
STDNO - Standard Number	ISO26623-1
MTP - Clamping Type Code	S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WCOR_MG1505_2
Hand	R
MIID - Master Insert Identification	R365-1505ZNE
IFS - Insert Mounting Style Code	3
SSC - Insert Seat Size Code	15
CICT - Cutting Item Count	5
ZEFP - Peripheral Effective Cutting Edge Count	5
DPC - Damping Property	False
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
CPDF - Cutting Pitch Differential	True
