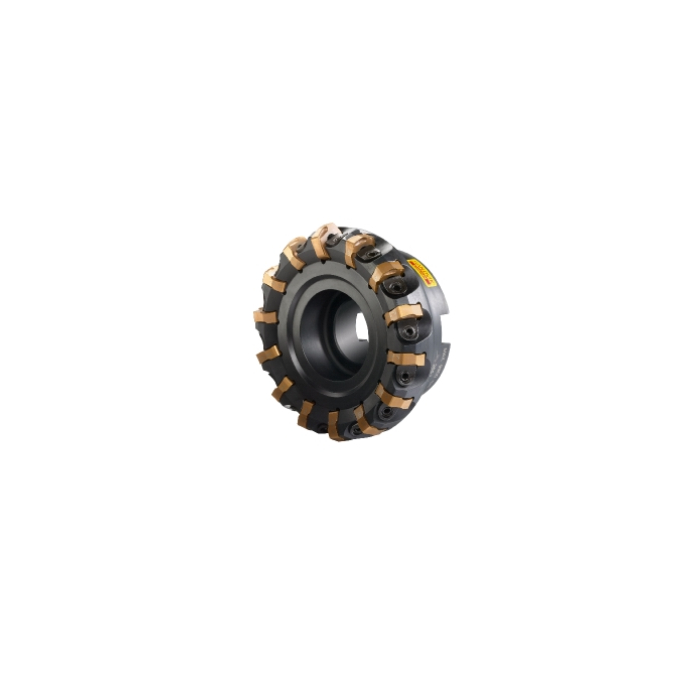

Sandvik Coromant R365-125Q40-W15H CoroMill™ 365 face milling cutter

Name: Sandvik Coromant R365-125Q40-W15H CoroMill™ 365 face milling cutter
SKU: 5745370
Price: 27928.90 ZAR
Availability: InStock

R 27 928,90 inc. vat

In stock

SKU

5745370

CoroMill® 365 face milling cutter

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® 365 face milling cutter

More Information
DCON - Connection Diameter	40mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	63mm
TQ - Torque	6Nm
RPMX - Rotational Speed Maximum	88001/min
WT - Weight Of Item	3.92kg
OAL - Overall Length	63mm
OHX - Maximum Overhang	63mm
KAPR - Tool Cutting Edge Angle	65deg
RMPX - Maximum Ramping Angle	0deg
GAMO - Orthogonal Rake Angle	-9.5deg
LAMS - Inclination Angle	-7deg
AN - Clearance Angle Major	0deg
IC - Inscribed Circle Diameter	15mm
Insert Thickness	5.66mm
APMX - Depth Of Cut Maximum	6mm
DC - Cutting Diameter	125mm
DCF - Cutting Diameter Face Contact	125mm
GAMF - Radial Rake Angle	-5.6977106deg
GAMP - Axial Rake Angle	-10.31507694deg
DCX - Maximum Cutting Diameter	131.7mm
AZ - Maximum Plunge Depth	0mm
ORDCODE	R365-125Q40-W15H
ADINTMS - Adaptive Interface Machine Direction	M_FDA1B1_G4000_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	1
CHANGEDATE	2022-03-24 02:07:00.000
STDLET - Standard Letter	B
STDNO - Standard Number	ISO6462
MTP - Clamping Type Code	W
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WCOR_MG1505_2
Hand	R
MIID - Master Insert Identification	R365-1505ZNE
IFS - Insert Mounting Style Code	1
SSC - Insert Seat Size Code	15
CICT - Cutting Item Count	18
ZEFP - Peripheral Effective Cutting Edge Count	18
DPC - Damping Property	False
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
CPDF - Cutting Pitch Differential	False
