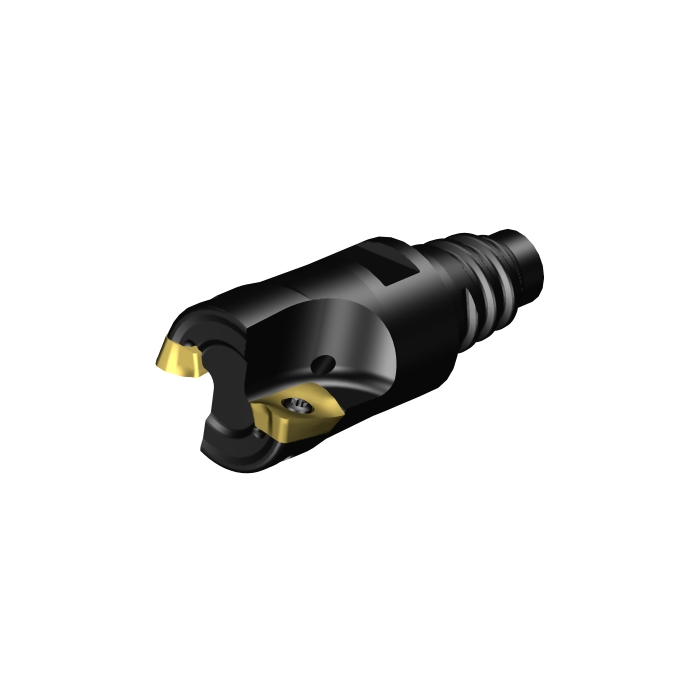

Sandvik Coromant R390-022EH20-11L CoroMill™ 390 square shoulder milling cutter

R 5 674,10 inc. vat
In stock
SKU
6426881
CoroMill® 390 square shoulder milling cutter
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 390 square shoulder milling cutter
More Information
CP - Coolant Pressure 1000000Pa
DCON - Connection Diameter 19.3mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 30mm
TQ - Torque 1.2Nm
RPMX - Rotational Speed Maximum 365001/min
WT - Weight Of Item 65g
OAL - Overall Length 49.5mm
OHX - Maximum Overhang 30mm
KAPR - Tool Cutting Edge Angle 90deg
RMPX - Maximum Ramping Angle 5deg
GAMO - Orthogonal Rake Angle -9.213deg
LAMS - Inclination Angle 14deg
AN - Clearance Angle Major 21deg
Insert Thickness 3.59mm
L - Cutting Edge Length 11.45mm
APMX - Depth Of Cut Maximum 10mm
W1 - Insert Width 6.8mm
DC - Cutting Diameter 22mm
DCF - Cutting Diameter Face Contact 20.4mm
GAMF - Radial Rake Angle -9.21299992deg
GAMP - Axial Rake Angle 13.99999985deg
AZ - Maximum Plunge Depth 1mm
ORDCODE R390-022EH20-11L
ADINTMS - Adaptive Interface Machine Direction M_SAT01_A0200_1
CNSC - Coolant Entry Style Code 1
CXSC - Coolant Exit Style Code 3
BMC - Body Material Code 1
CHANGEDATE 2022-06-15 15:09:00.000
MTP - Clamping Type Code S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers WCOR_MH11T3_1
Hand R
MIID - Master Insert Identification R390-11..
IFS - Insert Mounting Style Code 3
SC - Insert Shape Code L
SSC - Insert Seat Size Code 11
CICT - Cutting Item Count 2
ZEFP - Peripheral Effective Cutting Edge Count 2
DPC - Damping Property False
NROTF - Non Rotating Functionality False
RTOF - Rotating Functionality True
CPDF - Cutting Pitch Differential False
