R 9 333,40
inc. vat
Out of stock
SKU
6427018
CoroMill® 390 square shoulder milling cutter
Reliable nationwide shipping
Delivery in 4 - 5 days

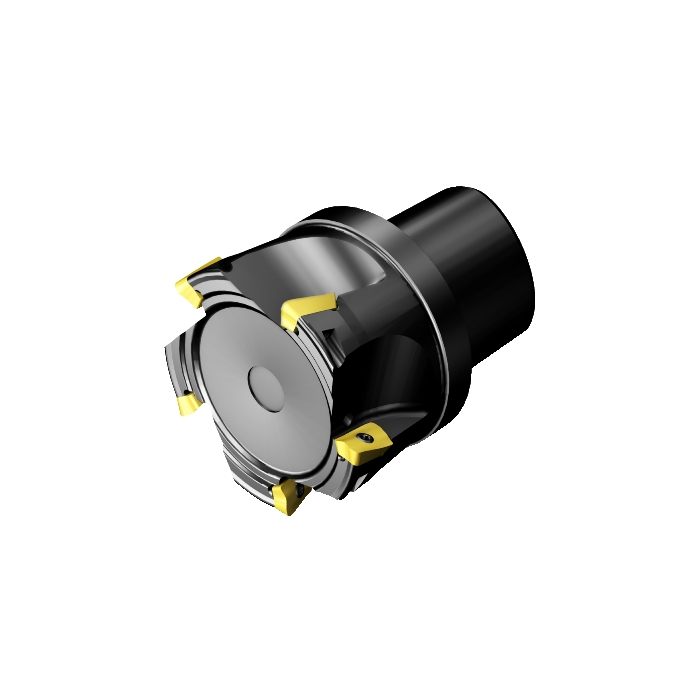

CoroMill® 390 square shoulder milling cutter
CP - Coolant Pressure | 7000000Pa |
---|---|
DFC - Functional Diameter | 28mm |
DCON - Connection Diameter | 40mm |
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 35mm |
TQ - Torque | 3Nm |
RPMX - Rotational Speed Maximum | 206001/min |
WT - Weight Of Item | 0.349kg |
OAL - Overall Length | 59mm |
OHX - Maximum Overhang | 35mm |
KAPR - Tool Cutting Edge Angle | 90deg |
RMPX - Maximum Ramping Angle | 3.4deg |
GAMO - Orthogonal Rake Angle | -5.268deg |
LAMS - Inclination Angle | 15.55deg |
AN - Clearance Angle Major | 19deg |
Insert Thickness | 4.7625mm |
L - Cutting Edge Length | 17.45mm |
APMX - Depth Of Cut Maximum | 15.7mm |
W1 - Insert Width | 9.6mm |
DC - Cutting Diameter | 44mm |
DCF - Cutting Diameter Face Contact | 42.4mm |
GAMF - Radial Rake Angle | -5.26799985deg |
GAMP - Axial Rake Angle | 15.54999989deg |
AZ - Maximum Plunge Depth | 1.5mm |
ORDCODE | R390-044C4T-17M |
ADINTMS - Adaptive Interface Machine Direction | M_CCS01_C0400_1 |
CNSC - Coolant Entry Style Code | 3 |
CXSC - Coolant Exit Style Code | 3 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-06-15 15:09:00.000 |
STDNO - Standard Number | ISO26623-1 |
MTP - Clamping Type Code | S |
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_MH1704_1 |
Hand | R |
MIID - Master Insert Identification | R390-17.. |
IFS - Insert Mounting Style Code | 3 |
SC - Insert Shape Code | L |
SSC - Insert Seat Size Code | 17 |
CICT - Cutting Item Count | 4 |
ZEFP - Peripheral Effective Cutting Edge Count | 4 |
DPC - Damping Property | False |
NROTF - Non Rotating Functionality | False |
RTOF - Rotating Functionality | True |
CPDF - Cutting Pitch Differential | False |
