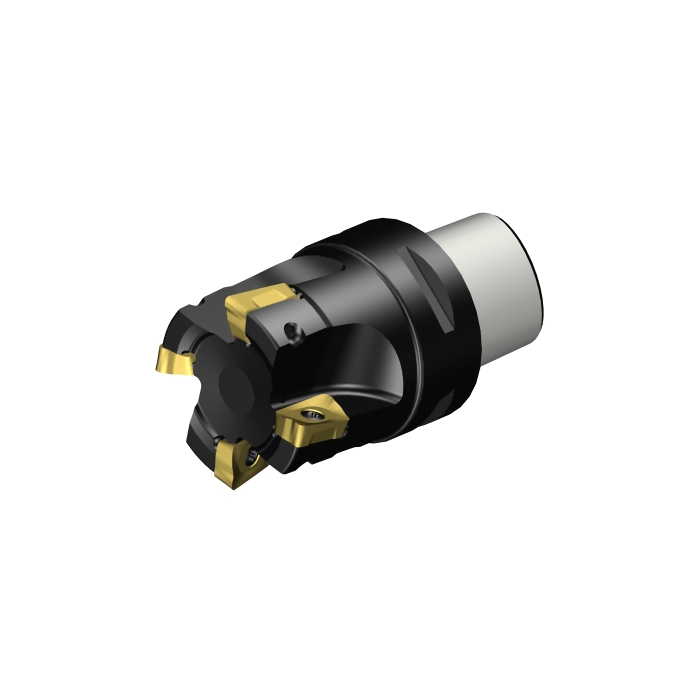

Sandvik Coromant R390-050C5-18M060 CoroMill™ 390 square shoulder milling cutter

R 9 089,60 inc. vat
In stock
SKU
5745487
CoroMill® 390 square shoulder milling cutter
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 390 square shoulder milling cutter
More Information
CP - Coolant Pressure 1000000Pa
DFC - Functional Diameter 35mm
DCON - Connection Diameter 50mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 60mm
TQ - Torque 3Nm
RPMX - Rotational Speed Maximum 79001/min
WT - Weight Of Item 0.771kg
OAL - Overall Length 90mm
OHX - Maximum Overhang 60mm
KAPR - Tool Cutting Edge Angle 90deg
RMPX - Maximum Ramping Angle 5.5deg
GAMO - Orthogonal Rake Angle -7.5deg
LAMS - Inclination Angle 13.5deg
AN - Clearance Angle Major 11deg
Insert Thickness 6.33mm
LU - Usable Length 40mm
L - Cutting Edge Length 18.45mm
APMX - Depth Of Cut Maximum 15.4mm
W1 - Insert Width 11mm
DC - Cutting Diameter 50mm
DCF - Cutting Diameter Face Contact 47.6mm
GAMF - Radial Rake Angle -7.50000014deg
GAMP - Axial Rake Angle 13.50000005deg
AZ - Maximum Plunge Depth 0mm
ORDCODE R390-050C5-18M060
ADINTMS - Adaptive Interface Machine Direction M_CCS01_C0500_1
CNSC - Coolant Entry Style Code 3
CXSC - Coolant Exit Style Code 3
BMC - Body Material Code 1
CHANGEDATE 2022-06-15 14:47:00.000
STDNO - Standard Number ISO26623-1
MTP - Clamping Type Code S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers WCOR_MH1806_1
Hand R
MIID - Master Insert Identification R390-18..
IFS - Insert Mounting Style Code 3
SC - Insert Shape Code L
SSC - Insert Seat Size Code 18
CICT - Cutting Item Count 4
ZEFP - Peripheral Effective Cutting Edge Count 4
DPC - Damping Property False
NROTF - Non Rotating Functionality False
RTOF - Rotating Functionality True
CPDF - Cutting Pitch Differential False
