R 20 497,60
inc. vat
In stock
SKU
5745792

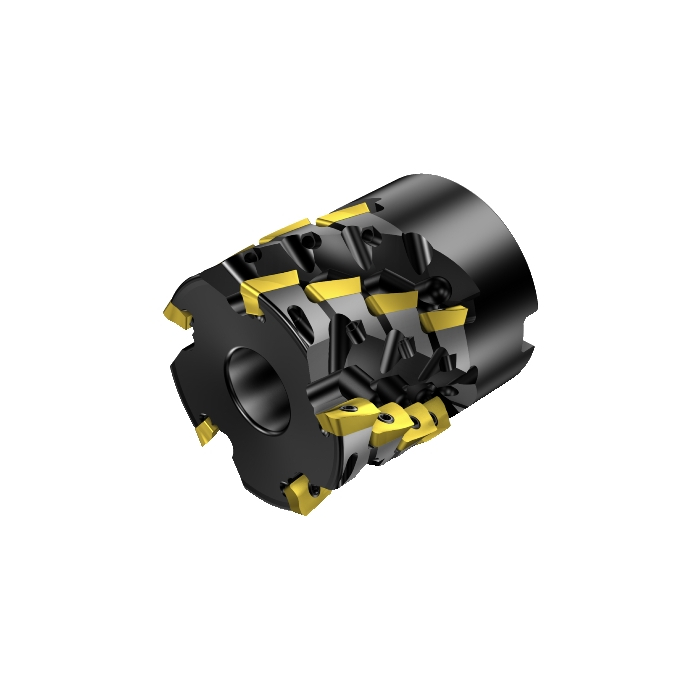

CoroMill® 390 long edge square shoulder milling cutter
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 390 long edge square shoulder milling cutter
DCON - Connection Diameter | 22mm |
---|---|
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 56.7mm |
TQ - Torque | 1.2Nm |
RPMX - Rotational Speed Maximum | 166001/min |
WT - Weight Of Item | 500g |
OAL - Overall Length | 56.7mm |
OHX - Maximum Overhang | 56.7mm |
KAPR - Tool Cutting Edge Angle | 90deg |
RMPX - Maximum Ramping Angle | 0deg |
GAMO - Orthogonal Rake Angle | -5.324deg |
LAMS - Inclination Angle | 24.63deg |
AN - Clearance Angle Major | 21deg |
Insert Thickness | 3.59mm |
L - Cutting Edge Length | 11.45mm |
APMX - Depth Of Cut Maximum | 36mm |
W1 - Insert Width | 6.8mm |
DC - Cutting Diameter | 50mm |
DCF - Cutting Diameter Face Contact | 48.4mm |
GAMF - Radial Rake Angle | -5.32400026deg |
GAMP - Axial Rake Angle | 24.63deg |
AZ - Maximum Plunge Depth | 0mm |
ORDCODE | R390-050Q22-36M |
ADINTMS - Adaptive Interface Machine Direction | M_FDA1A1_G2200_1 |
CNSC - Coolant Entry Style Code | 0 |
CXSC - Coolant Exit Style Code | 0 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-06-15 14:48:00.000 |
STDLET - Standard Letter | A |
STDNO - Standard Number | ISO6462 |
MTP - Clamping Type Code | S |
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_MH11T3_2 |
Hand | R |
MIID - Master Insert Identification | R390-11.. |
IFS - Insert Mounting Style Code | 3 |
SC - Insert Shape Code | L |
SSC - Insert Seat Size Code | 11 |
CICT - Cutting Item Count | 4 |
ZEFP - Peripheral Effective Cutting Edge Count | 4 |
DPC - Damping Property | False |
NROTF - Non Rotating Functionality | False |
RTOF - Rotating Functionality | True |
CPDF - Cutting Pitch Differential | True |
