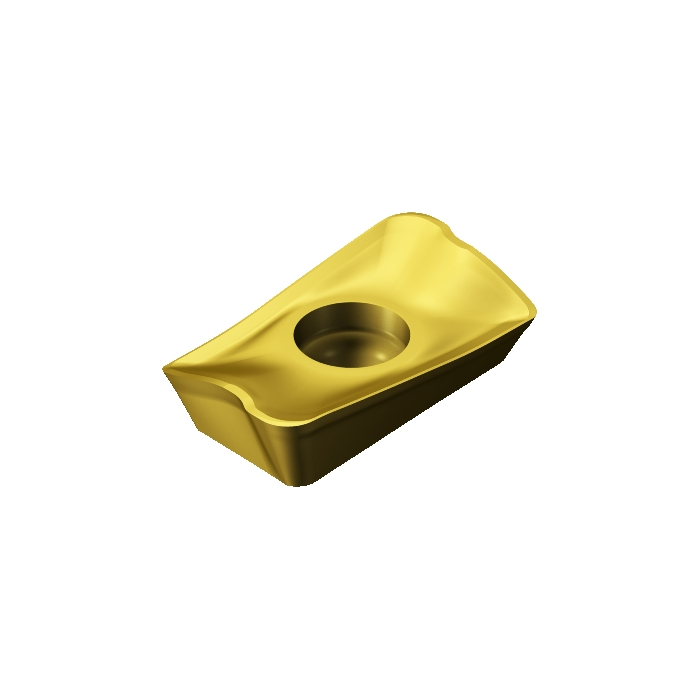

Sandvik Coromant R390-11 T3 08M-KL 1020 CoroMill™ 390 insert for milling
Next
Sandvik Coromant R390-11 T3 31E-ML 2040 CoroMill™ 390 insert for milling
Previous
![Sandvik Coromant R390-11 T3 08M-KL 1020 CoroMill™ 390 insert for milling](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/642756e6d/sandvik-coromant-r390-11-t3-08m-kl-1020-coromilltm-390-insert-for-milling.jpg)
![Sandvik Coromant R390-11 T3 31E-ML 2040 CoroMill™ 390 insert for milling](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/64273961f/sandvik-coromant-r390-11-t3-31e-ml-2040-coromilltm-390-insert-for-milling.jpg)
R 376,05
inc. vat
In stock
SKU
5745640
CoroMill® 390 insert for milling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 390 insert for milling
KAP - Kappa (z-axis Rot) | 0deg |
---|---|
WT - Weight Of Item | 2.3g |
AN - Clearance Angle Major | 21deg |
RE - Corner Radius | 0.8mm |
Insert Thickness | 3.59mm |
D1 - Fixing Hole Diameter | 2.8mm |
LE - Cutting Edge Effective Length | 10mm |
L - Cutting Edge Length | 11.45mm |
KRINS - Major Cutting Edge Angle | 90deg |
BS - Wiper Edge Length | 1.5mm |
APMX - Depth Of Cut Maximum | 10mm |
W1 - Insert Width | 6.8mm |
ORDCODE | R390-11 T3 08E-ML 2040 |
CHANGEDATE | 2022-09-23 16:52:00.000 |
Hand | R |
IFS - Insert Mounting Style Code | 3 |
SC - Insert Shape Code | L |
SSC - Insert Seat Size Code | 11 |
CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_MH11T3_1 |
Grade | 2040 |
COATING | CVD TiCrN+Al2O3+TiN |
SUBSTRATE | HC |
CBMD - Chip Breaker Manufacturer's Designation | ML |
CEDC - Cutting Edge Count | 2 |
WEP - Wiper Edge Property | True |
