Sandvik Coromant R390-11 T3 12E-PM 1025 CoroMill™ 390 insert for milling
R 369,15
inc. vat
In stock
SKU
5745863
CoroMill® 390 insert for milling
Reliable nationwide shipping
Delivery in 4 - 5 days

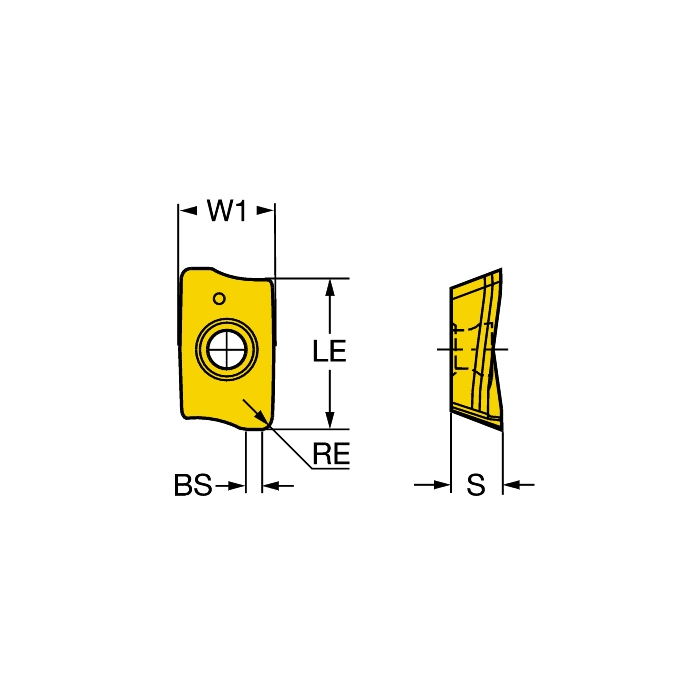

CoroMill® 390 insert for milling
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 2.4g |
| AN - Clearance Angle Major | 21deg |
| RE - Corner Radius | 1.2mm |
| Insert Thickness | 3.59mm |
| D1 - Fixing Hole Diameter | 2.8mm |
| LE - Cutting Edge Effective Length | 10mm |
| L - Cutting Edge Length | 11.45mm |
| KRINS - Major Cutting Edge Angle | 90deg |
| BS - Wiper Edge Length | 0.8mm |
| APMX - Depth Of Cut Maximum | 10mm |
| W1 - Insert Width | 6.8mm |
| ORDCODE | R390-11 T3 12E-PM 1025 |
| CHANGEDATE | 2022-09-23 17:04:00.000 |
| Hand | R |
| IFS - Insert Mounting Style Code | 3 |
| SC - Insert Shape Code | L |
| SSC - Insert Seat Size Code | 11 |
| CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_MH11T3_1 |
| Grade | 1025 |
| COATING | PVD TiCN+TiN |
| SUBSTRATE | HC |
| CBMD - Chip Breaker Manufacturer's Designation | PM |
| CEDC - Cutting Edge Count | 2 |
| WEP - Wiper Edge Property | True |
